group: 8771.XL
potable water
heating
cooling
compressed air
vacuum
steam
sprinkler
industry
utility
fire protection
IAPMO/ANSI/CAN Z1117
ICC LC1002
CRN
NSF/ANSI 372
NSF/ANSI 61
FM
UL
ULc
code
size
dimensions
weight
packaging
gtin + upc
code
size
2 1/2"
dimensions
3.62x7.00x7.00 "
weight
6.06 lb
packaging
-
gtin + upc
00683264617636
code
size
3"
dimensions
3.61x7.50x7.50 "
weight
7.29 lb
packaging
-
gtin + upc
00683264617698
code
size
4"
dimensions
3.82x9.00x9.00 "
weight
11.88 lb
packaging
-
gtin + upc
00683264617384
article

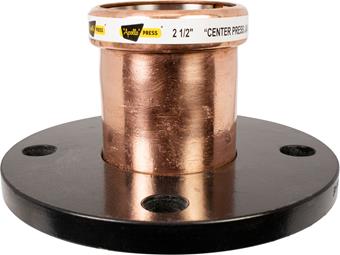

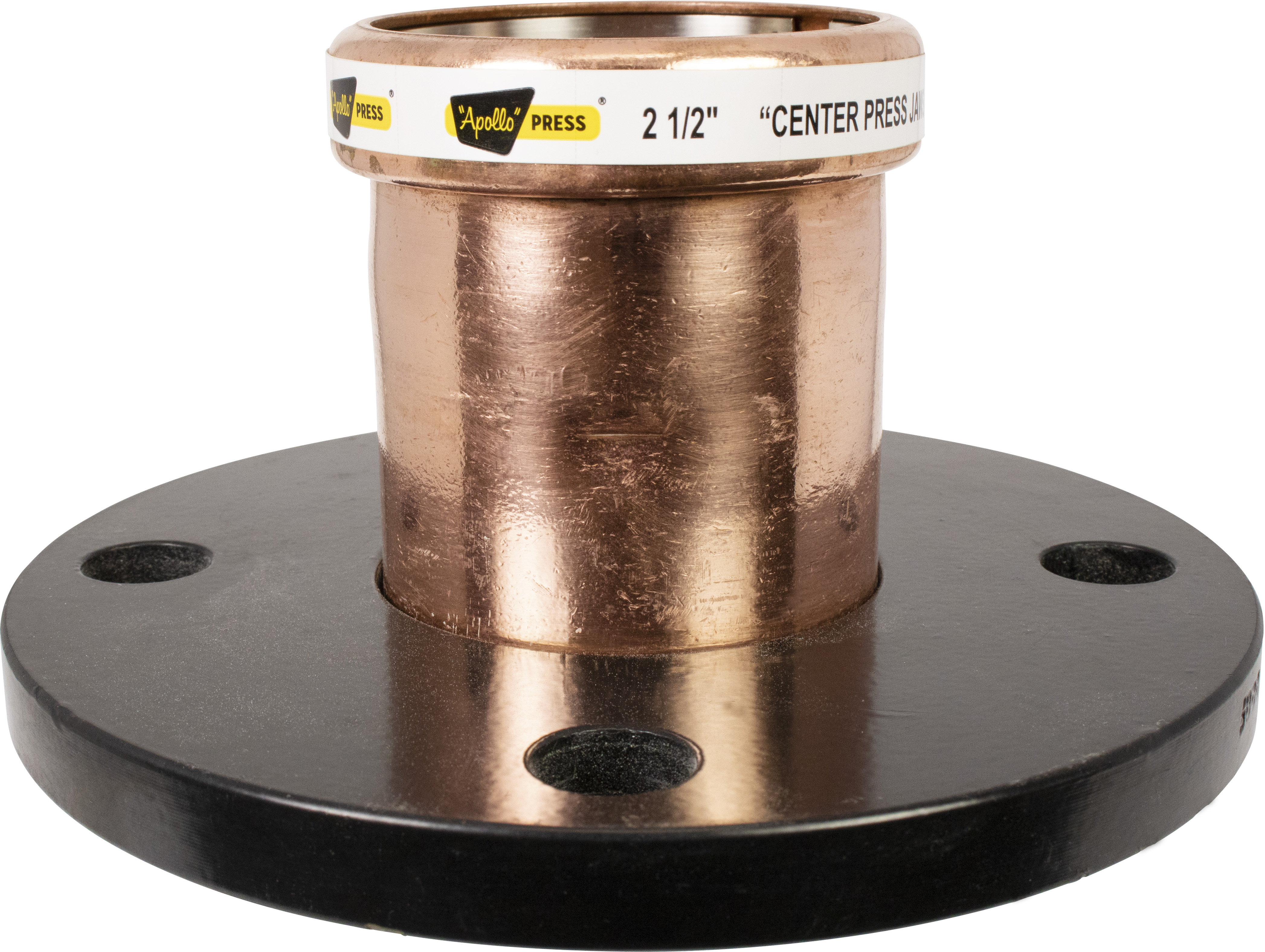

ApolloPress flange adapter – ANSI Class 150, large (P x FLG)
article number with gtin
8771.XL
manufacturer
Aalberts integrated piping systems Americas, Inc. (Apollo)
weight
11.88 lb
dimensions
3.82x9.00x9.00 "
color
copper
materials
copper (CW024A (UNS C12200))
finishing
none
shape
straight
connection type
press (V), flange
sealing
EPDM
max operating pressure liquid
300 psi
min. medium temperature
32 °F
max medium temperature
250 °F
product group
fittings (accessories (fittings))
ETIM class
EC003024 Fitting with 2 connectionscountry of origin
Hungary
brand
Apollo
series
ApolloPress
product type
8771.XL
unsps
40173409
label
value
label
etim-class
label
Material connection 1
value
Copper
label
Material quality connection 1
value
Cu-DHP (CW024A)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Steel
label
Surface protection connection 2
value
Coated
label
Shape
value
Straight
label
Model
value
2-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Press sleeve
label
Contour code connection 1
value
V
label
Connection 2
value
Flange
label
Main colour fitting
value
Copper
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
Medium temperature (continuous)
value
121.11111°C
label
Medium temperature (continuous) (imperial)
value
32°F - 250°F
label
Max. operating pressure at 20 °C
value
20.68bar
label
Max. operating pressure at 20 °C (imperial)
value
300psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
Yes
label
With drain valve
value
No
label
With de-aerator
value
No
label
LPCB quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
