group: 86VHFP

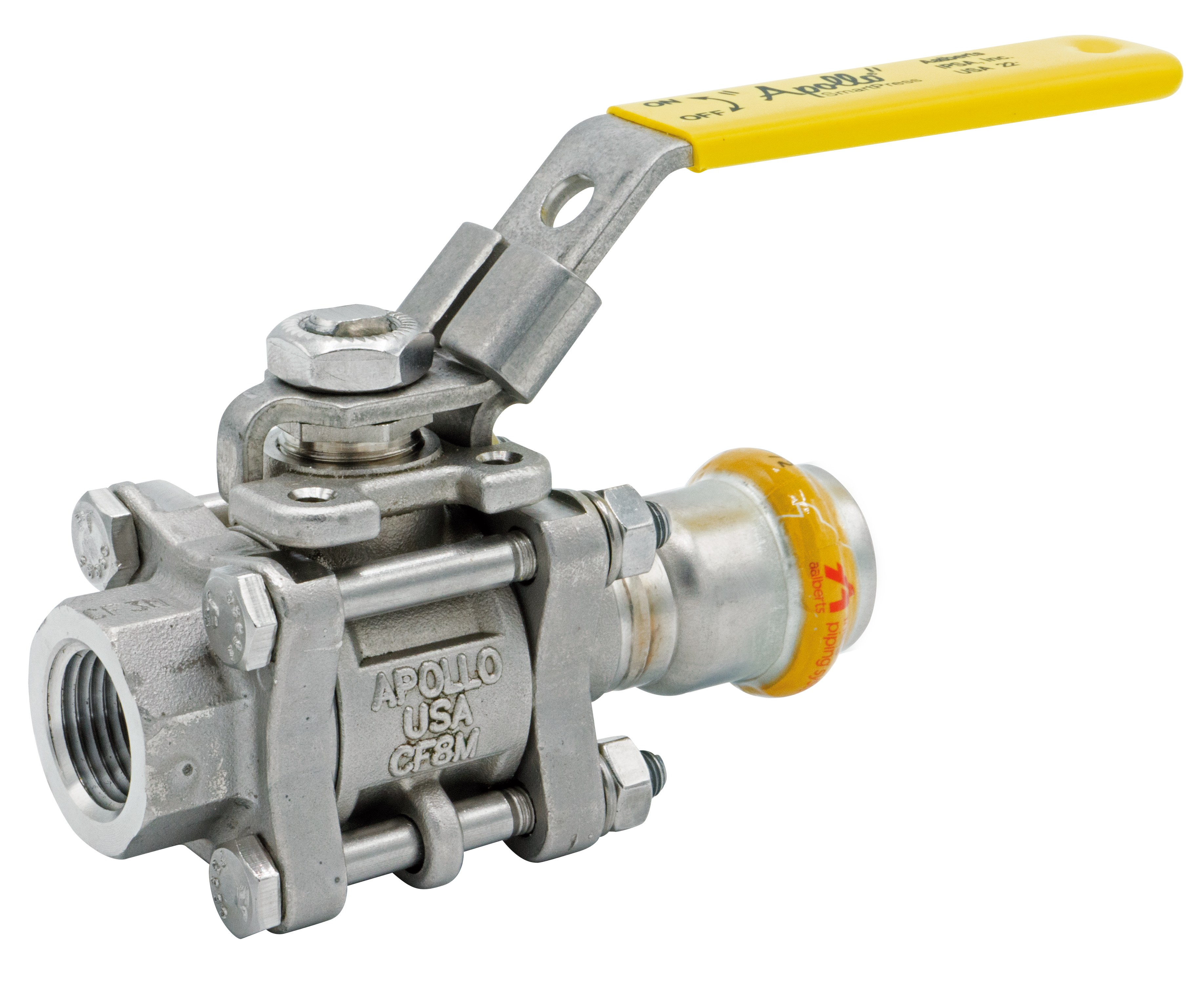

Introducing the86VHFP 3-Piece Ball Valve, a high-performance valve with a robust stainlesssteel AISI 316 construction. This versatile and durable valve is designed withFNPT x Press connections and a compact lay-length for easy installation.
Key features of the86VHFP 3-Piece Ball Valve include:
• 3-Piece, Easy toMaintain Design: In-line repairable
• HNBR SealingElement: Patented for superior performance
• Visu-control® Foil(VCF): Enhanced visual inspection
• Stainless SteelAISI 316: Lasting durability
• 100% Full Port:Optimized flow performance
• Max Pressure 500psi (34.5 bar): High-pressure compatibility
• OperatingTemperature Range: -40°F to 275°F
• Leak BeforePress-function: Reliable and secure connections
• PTFE AdjustablePacking: Tight seal and extended lifespan
• ISO 5211 ActuatorMounting Pad: Simplified actuator installation
potable water
heating
cooling
compressed air
industry
utility
NSF/ANSI 372
NSF/ANSI 61
IAPMO/ANSI Z1157
CRN
item code
size
dimensions
weight
packaging
gtin + upc
item code
size
1/2"
dimensions
6.30x1.81x3.39 "
weight
1.54 lb
packaging
Carton (3 pce)
gtin + upc
00191988144500
item code
size
3/4"xFPT3/4"
dimensions
6.61x1.97x3.62 "
weight
2.16 lb
packaging
Carton (3 pce)
gtin + upc
00191988144586
item code
size
1"xFPT1"
dimensions
8.07x2.20x4.09 "
weight
3.27 lb
packaging
Carton (3 pce)
gtin + upc
00191988144661
item code
size
1 1/2"xFPT1 1/2"
dimensions
10.12x3.07x5.51 "
weight
7.39 lb
packaging
Carton (1 pce)
gtin + upc
00191988144746
item code
size
2"xFPT2"
dimensions
10.55x4.02x6.34 "
weight
12.74 lb
packaging
Carton (1 pce)
gtin + upc
00191988144821
code
size
d1
DN1
l1
z1
d2
DN2
l2
z2
M1
M2
Y
V
U
a
item code
size
1/2"
d1
0.86
DN1
-
l1
1.42
z1
1.67
d2
0.86
DN2
-
l2
2.74
z2
0.88
M1
0.67
M2
4.90
Y
1.17
V
1.30
U
0.87
a
-
item code
size
3/4"xFPT3/4"
d1
1.07
DN1
-
l1
1.71
z1
2.00
d2
1.07
DN2
-
l2
3.05
z2
1.16
M1
0.67
M2
4.90
Y
1.17
V
1.49
U
0.87
a
-
item code
size
1"xFPT1"
d1
1.34
DN1
-
l1
1.93
z1
2.22
d2
1.34
DN2
-
l2
3.42
z2
1.27
M1
0.95
M2
6.15
Y
1.04
V
1.95
U
1.31
a
-
item code
size
1 1/2"xFPT1 1/2"
d1
1.93
DN1
-
l1
2.59
z1
2.88
d2
1.93
DN2
-
l2
4.28
z2
1.91
M1
1.25
M2
7.53
Y
1.53
V
2.45
U
1.37
a
-
item code
size
2"xFPT2"
d1
2.42
DN1
-
l1
3.02
z1
3.31
d2
2.42
DN2
-
l2
4.94
z2
2.32
M1
1.25
M2
7.53
Y
1.53
V
2.79
U
1.37
a
-
article

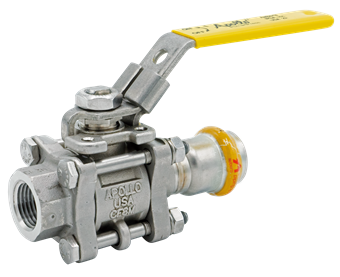

Apollo SmartPress AISI316 3 Piece Ball Valve FKM (press x FPT)
article number with gtin
86VHFP
manufacturer
Aalberts integrated piping systems Americas, Inc. (Apollo)
weight
12.74 lb
dimensions
10.55x4.02x6.34 "
color
silver
materials
stainless steel (Stainless steel 316L (1.4404))
finishing
none
shape
straight
connection type
press (V), FPT - female thread conical (NPT) (V)
sealing
HNBR
max operating pressure liquid
500 psi
min. medium temperature
-22 °F
max medium temperature
212 °F
peak medium temperature
230 °F
product group
valves (ball valves)
ETIM class
EC011343 Ball valvecountry of origin
United States
brand
Apollo
series
86V Series SmartPress Ball Valves
product type
86VHFP
unsps
40141607
label
value
label
etim-class
value
EC011343 Ball valvelabel
Housing material
value
Stainless steel
label
Material quality
value
Stainless steel 316 (1.4401)
label
Surface protection housing
value
None
label
Material ball
value
Stainless steel
label
Material spindle
value
Stainless steel
label
Material primary spindle seal
value
Polytetrafluoroethylene (PTFE)
label
Connection 1
value
Press sleeve
label
With coupling connection 1
value
No
label
Contour code connection 1
value
V
label
Connection 2
value
Internal thread conical (NPT)
label
With coupling connection 2
value
No
label
Contour code connection 2
value
V
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
Model
value
Straight
label
With insulation shell
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-30°C - 100°C
label
Medium temperature (continuous) (imperial)
value
-22°F - 212°F
label
Medically clean
value
No
label
Grease-free
value
No
label
Operation
value
Lever handle
label
Housing construction
value
3-part
label
Full bore
value
Yes
label
Angle of the valve
value
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
