group: 83A44X01

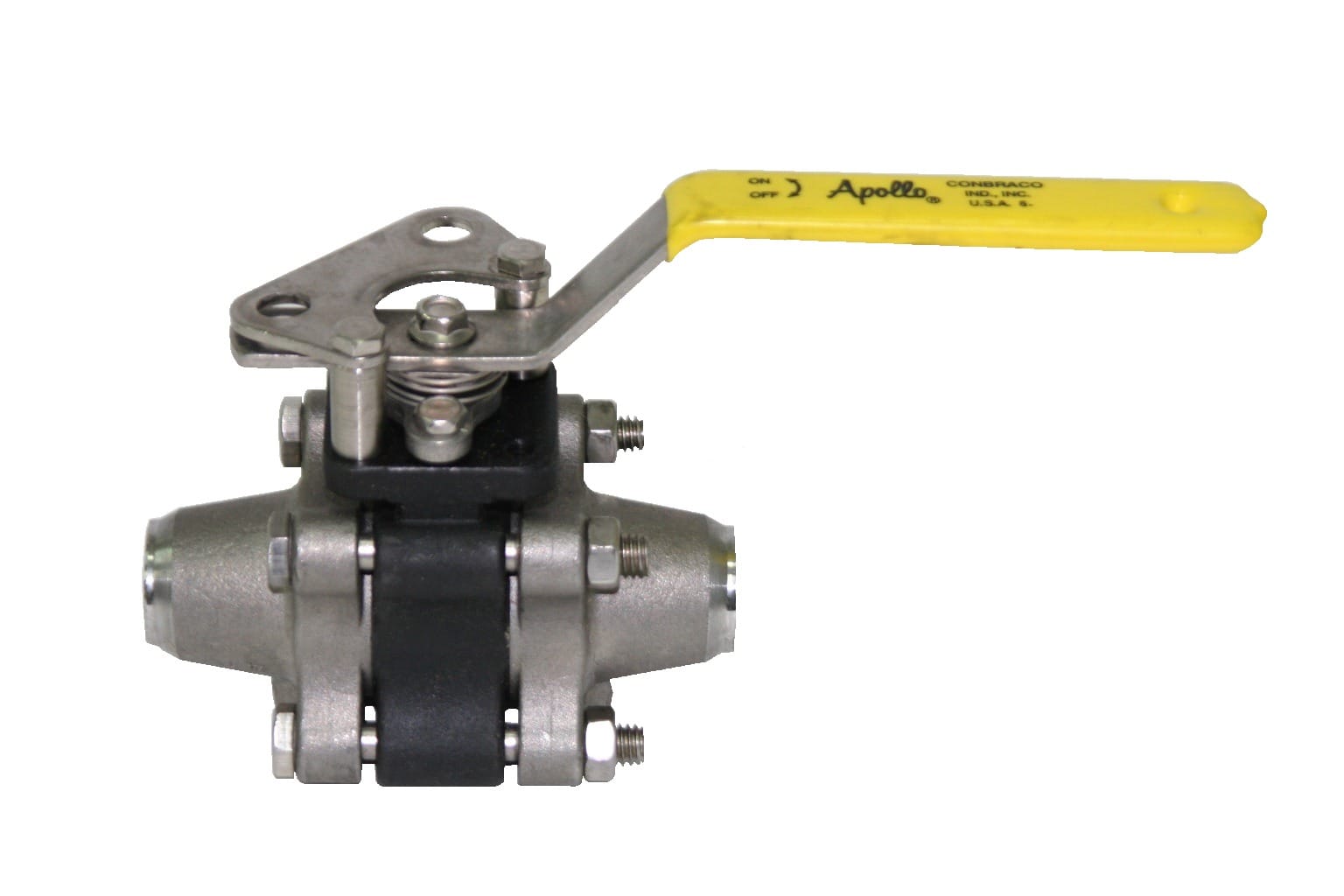

The 83A-440 is a Carbon Steel 3 Piece Full Port Ball Valve, designed for reliable and efficient fluid control. The 3-piece construction features enclosed fasteners for enhanced durability. It comes with a full port design and swing-out center section for optimal fluid flow. Other notable features include a pressure balanced solid ball and compression controlled RPTFE gaskets for dependable sealing. This valve also comes with an anti-blowout one-piece bottom entry stem, two-position locking, and an adjustable multi-piece PTFE “V” style packing for extra versatility and performance.
• 3-piececonstruction w/ enclosed fasteners
• full port
• stainless steel trim & hardware
• swing-out center section
• pressure balanced solid ball
• compression controlled RPTFE gaskets
• anti-blowout one piece bottom entry stem
• two-position locking
• adjustable multi-piece PTFE “V” style packing
• fully machined ISO5211 mounting
• cast bosses on the center-section and end caps for bleed & drain ports
• vacuum service to 29 in of Hg.
• 150 psi saturated steam
heating
cooling
steam
compressed air
vacuum
industry
utility
MSS SP-110
item code
size
dimensions
weight
packaging
gtin + upc
item code
size
1/2"
dimensions
8.75x2.75x6.00 "
weight
2.3 lb
packaging
Carton (1 pce)
gtin + upc
00670750614293
item code
size
3/4"
dimensions
8.75x2.75x6.00 "
weight
4 lb
packaging
Carton (1 pce)
gtin + upc
00670750614309
item code
size
1"
dimensions
8.75x2.75x6.00 "
weight
5.7 lb
packaging
Carton (1 pce)
gtin + upc
00670750636295
item code
size
1-1/2"
dimensions
8.75x2.75x6.00 "
weight
14.38 lb
packaging
Carton (1 pce)
gtin + upc
00670750629082
item code
size
2"
dimensions
8.75x2.75x6.00 "
weight
27.6 lb
packaging
Carton (1 pce)
gtin + upc
00670750490606
article
Apollo Carbon Steel 3 Piece Full Port Ball Valve with Standard Configuration (2 x Sch 10 Butt Weld)
article number with gtin
83A44X01
manufacturer
Aalberts integrated piping systems Americas, Inc. (Apollo)
weight
27.6 lb
dimensions
8.75x2.75x6.00 "
color
silver
materials
steel (ASTM A216 WCB)
finishing
none
shape
straight
connection type
butt Weld
sealing
Metal sealing
product group
valves (ball valves)
ETIM class
EC011343 Ball valvecountry of origin
United States
brand
Apollo
series
83A Series Ball Valves
product type
83A44X01
unsps
40141607
label
value
label
etim-class
value
EC011343 Ball valvelabel
Housing material
value
Steel
label
Surface protection housing
value
None
label
Sealing
value
Metal-sealing
label
With filter
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medically clean
value
No
label
Grease-free
value
No
label
Housing construction
value
3-part
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
