group: 4734

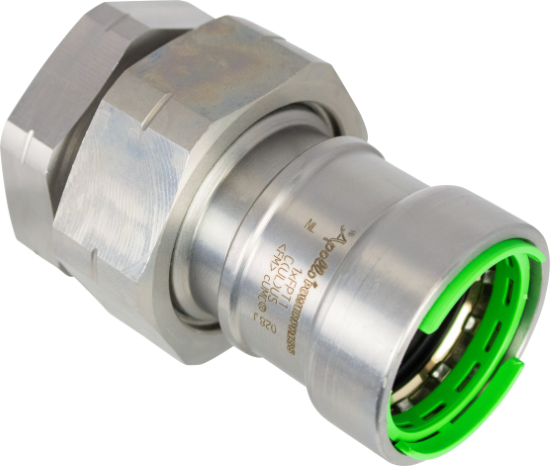

Apollo PowerPress® 4734 is a union designed for thick wall steel pipe. By using Apollo PowerPress® system installation times are reduced significantly and a clean working environment is assured. The range consists of DW-profile press fittings and valves in sizes 1/2" up to and including 2".
heating
cooling
compressed air
sprinkler
industry
fire protection
utility
no approvals available
code
size
dimensions
weight
packaging
gtin + upc
code
size
1/2"xFPT1/2"
dimensions
3.50x1.77x1.77 "
weight
0.49 lb
packaging
Bag (5 pce)
gtin + upc
08711985469677
code
size
3/4"xFPT3/4"
dimensions
4.25x1.77x1.77 "
weight
0.67 lb
packaging
Bag (5 pce)
gtin + upc
08711985469684
code
size
1"xFPT1"
dimensions
4.29x2.36x2.36 "
weight
1.01 lb
packaging
Bag (5 pce)
gtin + upc
08711985469691
code
size
1 1/4"xFPT1 1/4"
dimensions
4.21x3.03x3.03 "
weight
1.64 lb
packaging
Bag (1 pce)
gtin + upc
08711985469707
code
size
1 1/2"xFPT1 1/2"
dimensions
5.94x3.03x3.03 "
weight
2.23 lb
packaging
Bag (1 pce)
gtin + upc
08711985469714
code
size
2"xFPT2"
dimensions
6.61x3.70x3.70 "
weight
2.9 lb
packaging
Bag (1 pce)
gtin + upc
08711985469721

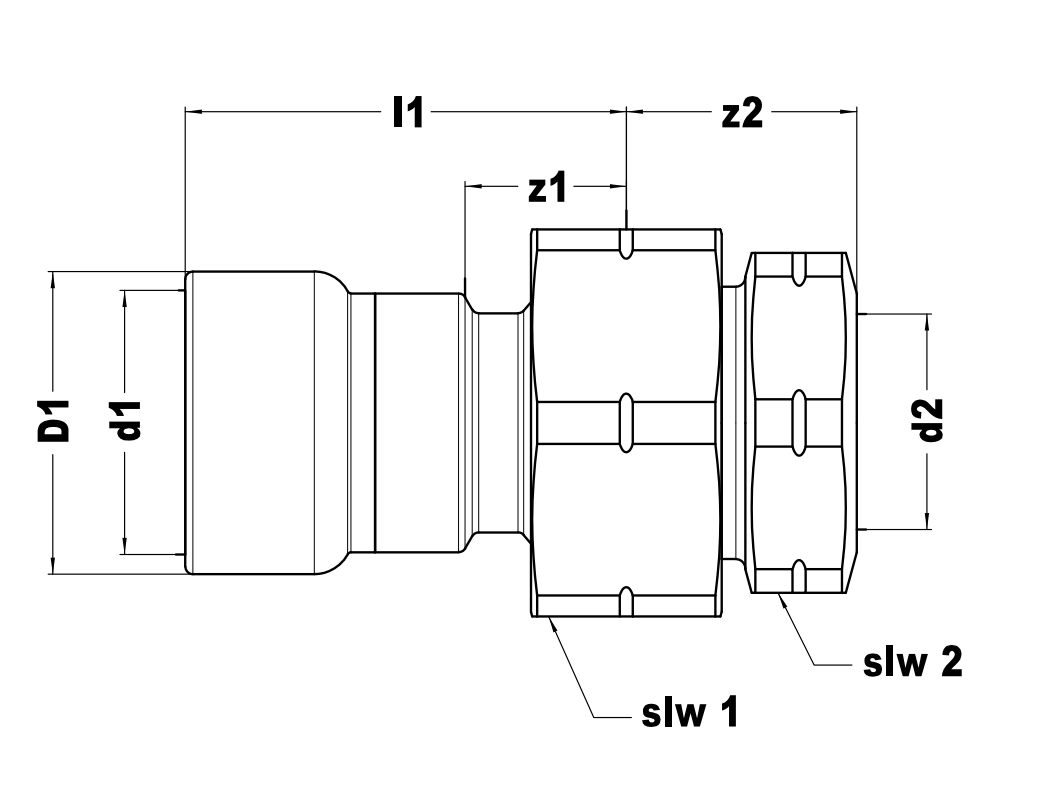

code
size
d1
DN1
l1
z1
slw1
d2
DN2
l2
z2
slw2
code
size
1/2"xFPT1/2"
d1
0.84
DN1
-
l1
1.84
z1
0.73
slw1
1.614
d2
0.84
DN2
-
l2
0.97
z2
0.97
slw2
1.417
code
size
3/4"xFPT3/4"
d1
1.06
DN1
-
l1
2.22
z1
1.00
slw1
1.614
d2
1.05
DN2
-
l2
0.91
z2
0.91
slw2
1.417
code
size
1"xFPT1"
d1
1.33
DN1
-
l1
2.27
z1
0.85
slw1
2.165
d2
1.32
DN2
-
l2
1.16
z2
1.16
slw2
1.969
code
size
1 1/4"xFPT1 1/4"
d1
1.67
DN1
-
l1
2.22
z1
0.34
slw1
2.756
d2
1.66
DN2
-
l2
1.23
z2
1.23
slw2
2.362
code
size
1 1/2"xFPT1 1/2"
d1
1.90
DN1
-
l1
3.09
z1
1.16
slw1
2.756
d2
1.90
DN2
-
l2
1.16
z2
1.16
slw2
2.362
code
size
2"xFPT2"
d1
2.37
DN1
-
l1
3.46
z1
1.37
slw1
3.346
d2
2.37
DN2
-
l2
1.41
z2
1.41
slw2
2.953
article
Apollo PowerPress union (press x female thread)
article number with gtin
4734
manufacturer
Aalberts integrated piping systems B.V. (VSH)
weight
2.9 lb
dimensions
6.61x3.70x3.70 "
color
grey
materials
steel (St 35 (1.0308))
finishing
zinc-nickel plated
shape
straight
connection type
press (DW), FPT - female thread conical (NPT)
pressure rating (PN)
PN 16
sealing
EPDM
max operating pressure liquid
232 psi
min. medium temperature
-40 °F
max medium temperature
302 °F
peak medium temperature
320 °F
product group
fittings (unions)
ETIM class
EC003024 Fitting with 2 connectionsintrastat code
73079980
country of origin
Netherlands
brand
Apollo
series
PowerPress
product type
4734
unsps
40174902
scip
d30775b1-132f-4657-80d3-acc91bda76c2
label
value
label
etim-class
label
Material connection 1
value
Steel
label
Material quality connection 1
value
St 35 (1.0308)
label
Surface protection connection 1
value
Zinc/nickel
label
Material connection 2
value
Steel
label
Material quality connection 2
value
St 35 (1.0308)
label
Surface protection connection 2
value
Zinc/nickel
label
Shape
value
Straight
label
Model
value
3-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Press sleeve
label
Contour code connection 1
value
DW
label
Connection 2
value
Internal thread conical (NPT)
label
Main colour fitting
value
Grey
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-40°C - 150°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 302°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.22psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
Yes
label
Capped
value
Yes
label
With connection indicator
value
Yes
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
