36LF30X00

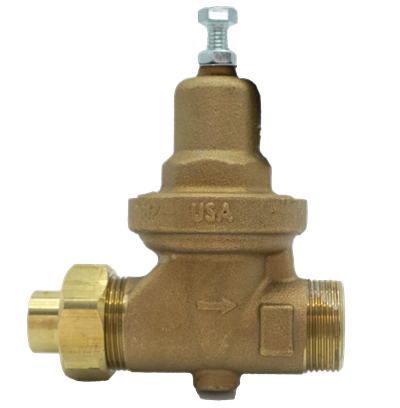

Apollo Valves 36LF Series Pressure Reducing Valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a lead free bronze body and stainless steel strainer.
applications
solutions
approvals
item code | size | weight | dimensions | packaging | gtin + upc |
---|---|---|---|---|---|
36LF30301 | 1/2" (DN15) | 3.5 lb | 5x3x6 in | Carton (1 pce) | 00670750930508 |
36LF30401 | 3/4" (DN20) | 3.4 lb | 5x3x6 in | Carton (1 pce) | 00670750919824 |
36LF30402 | 3/4" (DN20) | 3.4 lb | 5x3x6 in | Carton (1 pce) | 00670750727733 |
36LF30501 | 1" (DN25) | 4.5 lb | 6x3x7 in | Carton (1 pce) | 00670750919831 |
36LF30601 | 1-1/4" (DN32) | 10.2 lb | 7x4x9 in | Carton (1 pce) | 00670750934278 |
36LF30701 | 1-1/2" (DN40) | 10.45 lb | 7x4x9 in | Carton (1 pce) | 00670750934285 |
36LF30801 | 2" (DN50) | 22.5 lb | 9x6x12 in | Carton (1 pce) | 00670750650925 |
36LF30802 | 2" (DN50) | 22.5 lb | 9x6x12 in | Carton (1 pce) | 00670750650949 |
36LF30803 | 2" (DN50) | 22.5 lb | 9x6x12 in | Carton (1 pce) | 00670750651236 |
color | yellow, bronze |
---|---|
materials | bronze (C89836 (lead-free)) |
finishing | none |
manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
shape | straight (0º) |
connection type | solder, FPT - female thread conical (NPT) |
product group | valves (pressure reducing valve) |
---|---|
ETIM class | EC010122 Pressure reducing valve |
country of origin | United States |
brand | Apollo Valves |
series | 36LF - Pressure Reducing Valves |
product type | 36LF30X00 |
unsps | 40141652 |
label | value |
---|---|
ETIM class | EC010122 Pressure reducing valve |
Housing material | Bronze |
Surface protection | Untreated |
Connection 1 | Soldered sleeve |
Connection 2 | Internal thread conical (NPT) |
Max. inlet pressure | 20.67bar |
Max. inlet pressure (imperial) | 300psi |
With pressure gauge | No |
Suitable for liquids | No |
Suitable for steam | No |
Suitable for gases | No |
