3620X00

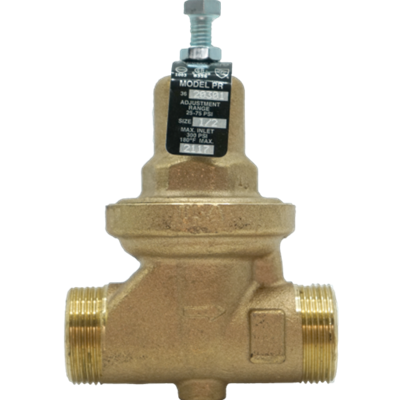

Apollo Valves 36 Series Water Pressure Reducing Valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a bronze body and stainless steel strainer.
applications
solutions
approvals
item code | size | weight | dimensions | packaging | gtin + upc |
---|---|---|---|---|---|
3620301 | 1/2" (DN15) | 3.11 lb | 4x3x6 in | Carton (1 pce) | 00670750563300 |
3620302 | 1/2" (DN15) | 3.11 lb | 4x3x6 in | Carton (1 pce) | 00670750563324 |
3620303 | 1/2" (DN15) | 3.11 lb | 4x3x6 in | Carton (1 pce) | 00670750563331 |
3620401 | 3/4" (DN20) | 3.05 lb | 4x3x6 in | Carton (1 pce) | 00670750563386 |
3620402 | 3/4" (DN20) | 3.05 lb | 4x3x6 in | Carton (1 pce) | 00670750563409 |
3620403 | 3/4" (DN20) | 3.05 lb | 4x3x6 in | Carton (1 pce) | 00670750563416 |
3620501 | 1" (DN25) | 4.15 lb | 4x3x7 in | Carton (1 pce) | 00670750563461 |
3620502 | 1" (DN25) | 4.15 lb | 4x3x7 in | Carton (1 pce) | 00670750563485 |
3620503 | 1" (DN25) | 4.15 lb | 4x3x7 in | Carton (1 pce) | 00670750563492 |
3620601 | 1-1/4" (DN32) | 9.1 lb | 5x4x9 in | Carton (1 pce) | 00670750563539 |
3620602 | 1-1/4" (DN32) | 9.1 lb | 5x4x9 in | Carton (1 pce) | 00670750563553 |
3620701 | 1-1/2" (DN40) | 9.09 lb | 5x4x9 in | Carton (1 pce) | 00670750563607 |
3620702 | 1-1/2" (DN40) | 9.09 lb | 5x4x9 in | Carton (1 pce) | 00670750563621 |
3620703 | 1-1/2" (DN40) | 9.09 lb | 5x4x9 in | Carton (1 pce) | 00670750563638 |
3620801 | 2" (DN50) | 18.8 lb | 8x6x12 in | Carton (1 pce) | 00670750563676 |
3620802 | 2" (DN50) | 18.8 lb | 8x6x12 in | Carton (1 pce) | 00670750563690 |
3620803 | 2" (DN50) | 18.8 lb | 8x6x12 in | Carton (1 pce) | 00670750563706 |
color | yellow, bronze |
---|---|
materials | bronze (ASTM B584-C84400) |
finishing | none |
manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
shape | straight (0º) |
connection type | FPT - female thread conical (NPT) |
sealing | EPDM |
product group | valves (pressure reducing valve) |
---|---|
ETIM class | EC010122 Pressure reducing valve |
country of origin | United States |
brand | Apollo Valves |
series | 36 - Pressure Reducing Valves |
product type | 3620X00 |
unsps | 40141652 |
label | value |
---|---|
ETIM class | EC010122 Pressure reducing valve |
Housing material | Bronze |
Surface protection | Untreated |
Connection 1 | Internal thread conical (NPT) |
With coupling connection 1 | No |
Connection 2 | Internal thread conical (NPT) |
With coupling connection 2 | No |
Max. inlet pressure | 20.67bar |
Max. inlet pressure (imperial) | 300psi |
Sealing | Ethylene-propylene diene monomer rubber (EPDM) |
With pressure gauge | No |
Suitable for liquids | No |
Suitable for steam | No |
Suitable for gases | No |
Spindle angle | 90° |
