30LF04X01

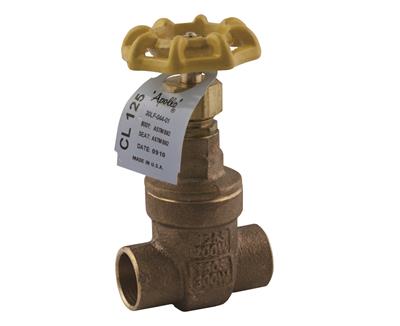

The lead free* Apollo® Model 102S-LF (30LF Series) Gate Valve provides a “Made in the USA” alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality lead free materials.
applications
solutions
approvals
item code | size | weight | dimensions | packaging | gtin + upc |
---|---|---|---|---|---|
30LF04301 | 1/2" (DN15) | 0.96 lb | Carton (1 pce) | 00670750686689 | |
30LF04401 | 3/4" (DN20) | 1.13 lb | Carton (1 pce) | 00670750616488 | |
30LF04501 | 1" (DN25) | 1.85 lb | Carton (1 pce) | 00670750618109 | |
30LF04601 | 1-1/4" (DN32) | 2.55 lb | Carton (1 pce) | 00670750686887 | |
30LF04701 | 1-1/2" (DN40) | 2.55 lb | Carton (1 pce) | 00670750686955 | |
30LF04801 | 2" (DN50) | 2.55 lb | Carton (1 pce) | 00670750687013 | |
30LF04901 | 2-1/2" (DN65) | 10.76 lb | 5x4x11 in | Carton (1 pce) | 00670750687075 |
30LF04001 | 3" (DN80) | 15.84 lb | Carton (1 pce) | 00670750686719 |
color | yellow |
---|---|
materials | bronze (C89836 (lead-free)) |
manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
connection type | solder |
product group | valves (gate valve) |
---|---|
ETIM class | EC010163 Gate valve |
country of origin | United States |
brand | Apollo Valves |
series | 102S-LF (30LF) - Gate Valves |
product type | 30LF04X01 |
unsps | 40141613 |
label | value |
---|---|
ETIM class | EC010163 Gate valve |
Housing material | Bronze |
Connection 1 | Soldered sleeve |
Connection 2 | Soldered sleeve |
FM quality mark | No |
UL quality mark | No |
ULC quality mark | No |
LPCB quality mark | No |
VdS quality mark | No |
KIWA certified | No |
Gastec QA mark | No |
