3003X01PR

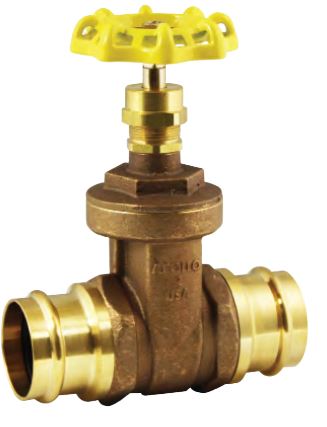

The APOLLOPRESS® Model 102T-PR (30 Series) Class 125 Gate Valve with press connections is a proven combination that provides economical installation and reliable service. The valves are cast, machined, assembled, and tested in South Carolina with proven ASTM quality material. The gate valve can reliably be installed in most plumbing and heating systems or building service piping and OEM applications. Not intended for potable water.
applications
solutions
item code | size | weight | dimensions | packaging | gtin + upc |
---|---|---|---|---|---|
3003301PR | 1/2" (DN15) | 1.04 lb | Carton (1 pce) | 00670750687280 | |
3003401PR | 3/4" (DN20) | 1.44 lb | Carton (1 pce) | 00670750687266 | |
3003501PR | 1" (DN25) | 2.34 lb | Carton (1 pce) | 00670750687327 | |
3003601PR | 1-1/4" (DN32) | 3.46 lb | Carton (1 pce) | 00670750687358 | |
3003701PR | 1-1/2" (DN40) | 3.8 lb | Carton (1 pce) | 00670750687389 |
color | yellow |
---|---|
materials | bronze (ASTM B62) |
manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
connection type | press |
product group | valves (gate valve) |
---|---|
ETIM class | EC010163 Gate valve |
country of origin | United States |
brand | Apollo Valves |
series | 101T-PR (30-PR) Gate Valves |
product type | 3003X01PR |
unsps | 40141613 |
label | value |
---|---|
ETIM class | EC010163 Gate valve |
Housing material | Bronze |
Connection 1 | Press sleeve |
Connection 2 | Press sleeve |
FM quality mark | No |
UL quality mark | No |
ULC quality mark | No |
LPCB quality mark | No |
VdS quality mark | No |
KIWA certified | No |
Gastec QA mark | No |
