3003X01K

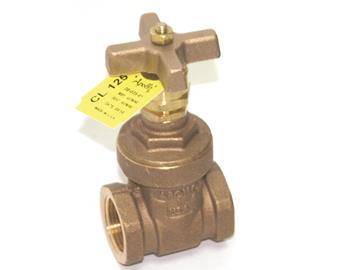

The Apollo® Model 102T-K (30 Series) Gate Valve provides a cost effective “Made in the USA” alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo® gate valve is ideal for use in a wide variety of plumbing and heating applications including building service piping systems.
applications
solutions
item code | size | weight | dimensions | packaging | gtin + upc |
---|---|---|---|---|---|
3003301K | 1/2" (DN15) | 0.85 lb | Carton (1 pce) | 00670750688201 | |
3003501K | 1" (DN25) | 1.98 lb | Carton (1 pce) | 00670750688225 | |
3003601K | 1-1/4" (DN32) | 2.86 lb | Carton (1 pce) | 00670750688232 | |
3003701K | 1-1/2" (DN40) | 2.86 lb | Carton (1 pce) | 00670750688249 | |
3003801K | 2" (DN50) | 5.48 lb | Carton (1 pce) | 00670750688256 | |
3003901K | 2-1/2" (DN65) | 12.16 lb | Carton (1 pce) | 00670750688263 | |
3003001K | 3" (DN80) | 16.92 lb | Carton (1 pce) | 00670750688270 |
color | yellow |
---|---|
materials | bronze (C89836 (lead-free)) |
manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
connection type | FPT - female thread conical (NPT) |
product group | valves (gate valve) |
---|---|
ETIM class | EC010163 Gate valve |
country of origin | United States |
brand | Apollo Valves |
series | 102T-K (30) - Gate Valves |
product type | 3003X01K |
unsps | 40141613 |
label | value |
---|---|
ETIM class | EC010163 Gate valve |
Housing material | Bronze |
Connection 1 | Internal thread conical (NPT) |
Connection 2 | Internal thread conical (NPT) |
FM quality mark | No |
UL quality mark | No |
ULC quality mark | No |
LPCB quality mark | No |
VdS quality mark | No |
KIWA certified | No |
Gastec QA mark | No |
