3000X01

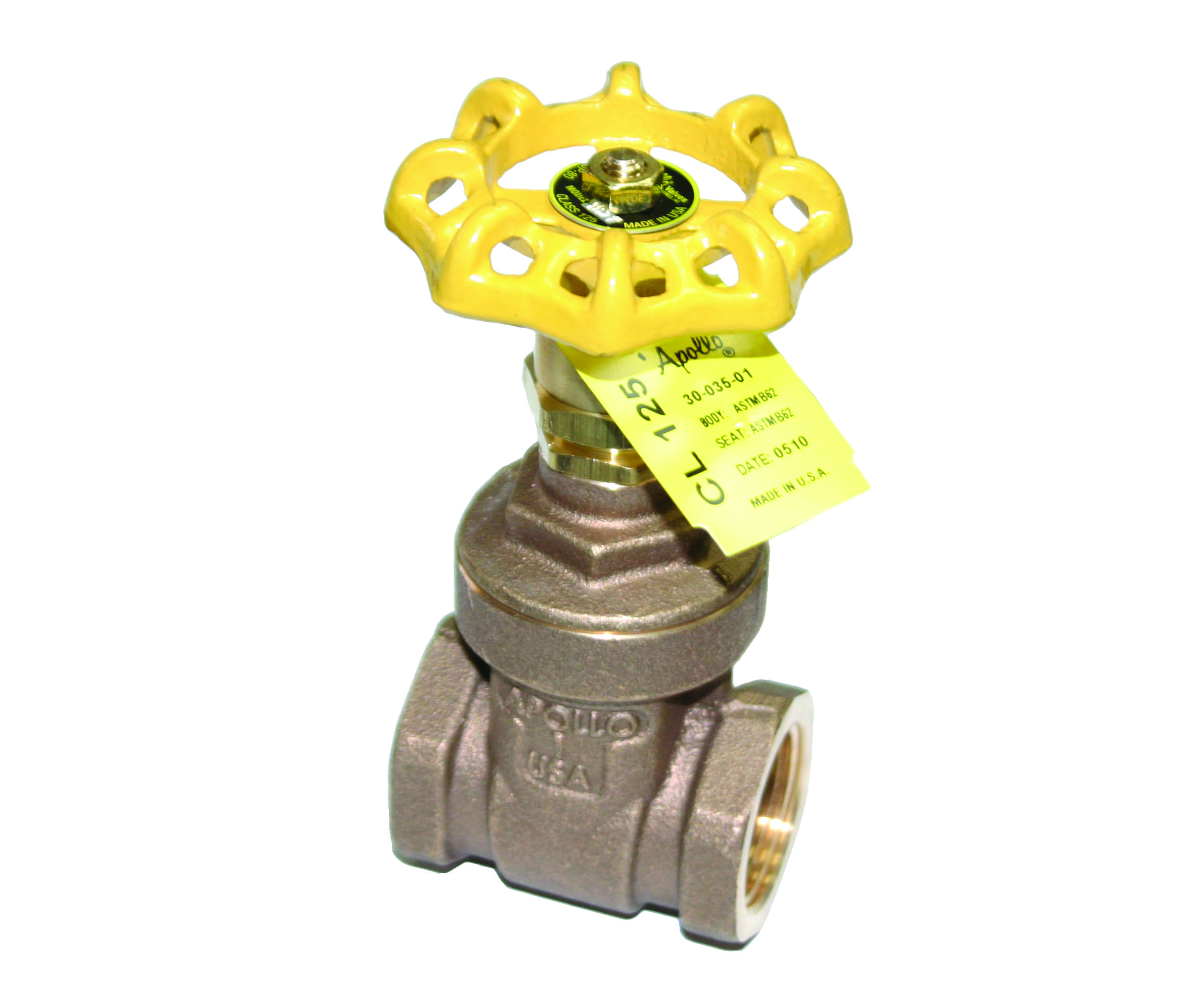

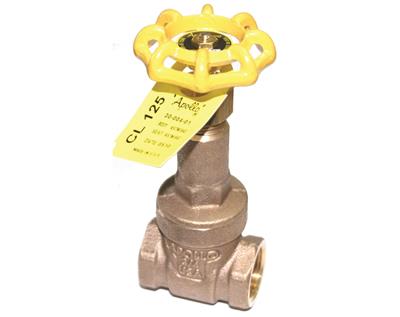

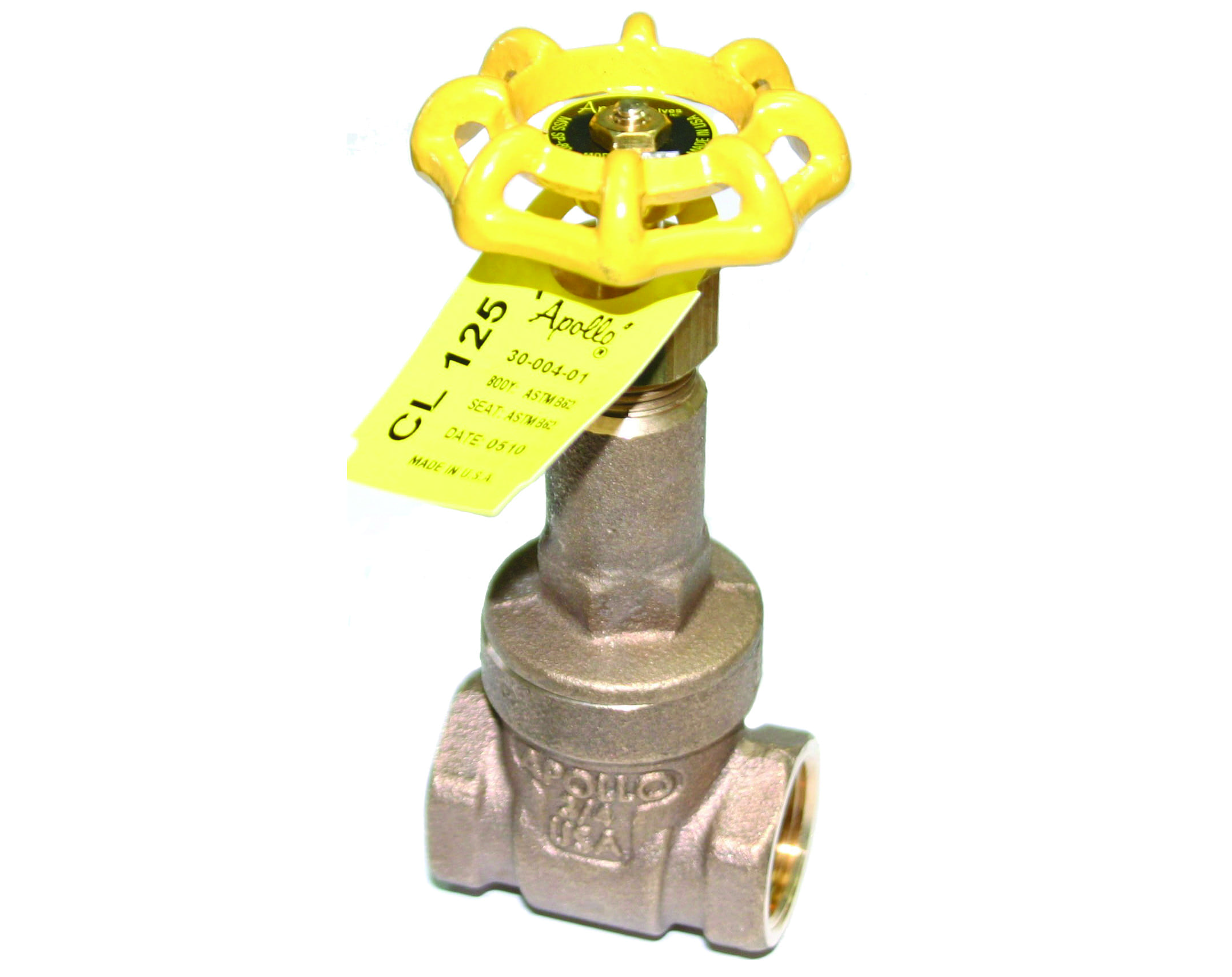

The Apollo® Model 101T (30 Series) Class 125 Gate Valve provides a cost effective “Made in the USA” alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo® gate valve is ideal for use in a wide variety of plumbing and heating applications including building service piping systems.

  • Full Port
  • Screw-in Bonnet
  • Dezincification Resistant Bronze Construction
  • Guided Solid Bronze Disc Wedge
  • Back Seat Protection
  • Adjustable Graphite Stem Packing
  • Rugged Malleable Iron Hand Wheel
  • 100% Factory Tested
  • 100% Cast, Machined and Assembled in the USA
  • ARRA Compliant



applications

heating cooling steam

solutions

building installations
item code size weight dimensions packaging gtin + upc
3005101 1/4" (DN8) 0.9 lb Carton (1 pce) 00670750655517
3005201 3/8" (DN10) 0.87 lb Carton (1 pce) 00670750655449
3005301 1/2" (DN15) 1.07 lb Carton (1 pce) 00670750637797
3005401 3/4" (DN20) 1.43 lb Carton (1 pce) 00670750601477
3005501 1" (DN25) 2.44 lb Carton (1 pce) 00670750607400
3005601 1-1/4" (DN32) 3.7 lb Carton (1 pce) 00670750666438
3005701 1-1/2" (DN40) 4.95 lb Carton (1 pce) 00670750666629
3005801 2" (DN50) 7.5 lb 3x3x11 in Carton (1 pce) 00670750675911
3005901 2-1/2" (DN65) 15.03 lb Carton (1 pce) 00670750682650
3005001 3" (DN80) 19.71 lb Carton (1 pce) 00670750656675
item code size DN1 DN2
3005101 1/4" (DN8) DN8 DN8
3005201 3/8" (DN10) DN10 DN10
3005301 1/2" (DN15) DN15 DN15
3005401 3/4" (DN20) DN20 DN20
3005501 1" (DN25) DN25 DN25
3005601 1-1/4" (DN32) DN32 DN32
3005701 1-1/2" (DN40) DN40 DN40
3005801 2" (DN50) DN50 DN50
3005901 2-1/2" (DN65) DN65 DN65
3005001 3" (DN80) DN80 DN80
see above for the diagram with these dimensions.
color yellow
materials bronze (C89836 (lead-free))
manufacturer Aalberts integrated piping systems Americas, Inc. (Apollo)
connection type FPT - female thread conical (NPT)
product group valves (gate valve)
ETIM class EC010163 Gate valve
country of origin United States
brand Apollo Valves
series 103T (30) - Gate Valves
unsps 40141613
label value
ETIM class EC010163 Gate valve
Housing material Bronze
Connection 1 Internal thread conical (NPT)
Connection 2 Internal thread conical (NPT)
FM quality mark No
UL quality mark No
ULC quality mark No
LPCB quality mark No
VdS quality mark No
KIWA certified No
Gastec QA mark No
