18C5028000

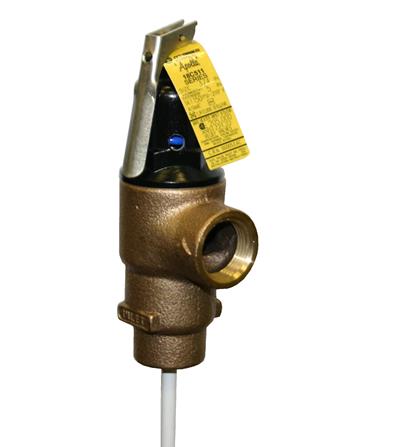

The Apollo 18C-500 Series bronze automatic temperature and pressure relief valves are used for protection of high capacity commercial hot water heaters and storage tanks.
applications
solutions
approvals
item code | size | weight | dimensions | packaging | gtin + upc |
---|---|---|---|---|---|
18C5128125 | 3/4" (DN20) | 1.07 lb | Carton (1 pce) | 00670750121647 | |
18C5128150 | 3/4" (DN20) | 1.07 lb | Carton (1 pce) | 00670750121654 | |
18C5228125 | 1" (DN25) | 2.87 lb | Carton (1 pce) | 00670750121845 | |
18C5228150 | 1" (DN25) | 2.87 lb | Carton (1 pce) | 00670750121920 |

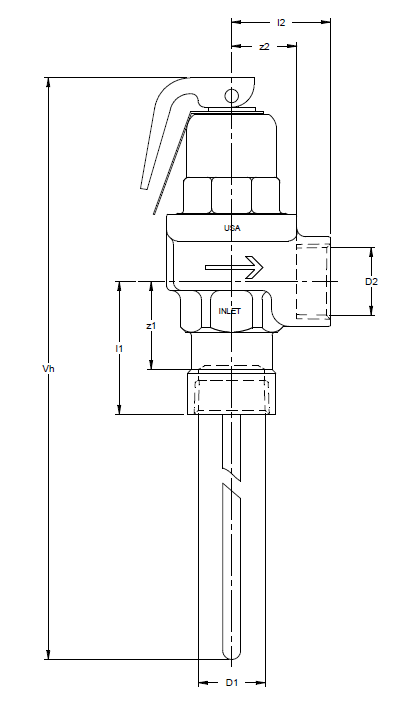

item code | size | d1 | DN1 | d2 | DN2 |
---|---|---|---|---|---|
18C5128125 | 3/4" (DN20) | 1.050 | 3/4" (DN20) | 1.050 | 3/4" (DN20) |
18C5128150 | 3/4" (DN20) | 1.050 | 3/4" (DN20) | 1.050 | 3/4" (DN20) |
18C5228125 | 1" (DN25) | 1.315 | 1" (DN25) | 1.315 | 1" (DN25) |
18C5228150 | 1" (DN25) | 1.315 | 1" (DN25) | 1.315 | 1" (DN25) |
color | bronze |
---|---|
materials | bronze (ASTM B584-C84400) |
finishing | none |
manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
connection type | FPT - female thread conical (NPT) |
product group | valves (safety relief valve) |
---|---|
ETIM class | EC011311 Safety valve |
country of origin | United States |
brand | Apollo Valves |
series | 18C-500 - Safety Relief Valves |
product type | 18C5028000 |
unsps | 40141606 |
label | value |
---|---|
ETIM class | EC011311 Safety valve |
Housing material | Bronze |
Connection 1 | Internal thread conical (NPT) |
Connection 2 | Internal thread conical (NPT) |
Max. operating pressure at 20 °C | 10.34bar |
Max. operating pressure at 20 °C (imperial) | 150psi |
Surface protection | Untreated |
Length of connection 2 | 40mm |
Length of connection 2 (imperial) | 1.57" |
Height | 0mm |
Suitable for heating | Yes |
Suitable for cooling | No |
Suitable for solar heating | No |
Suitable for hot tap water | No |
