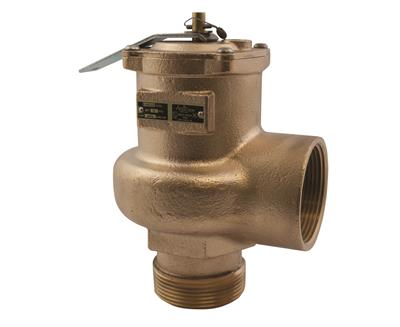

1420X
The Apollo® 14 Series is a 100% American Made Bronze Safety Relief Valve for protection of steam boilers, low pressure, high volume blowers, compressors and vacuum systems.
applications
solutions
approvals
item code | size | weight | dimensions | packaging | gtin + upc |
---|---|---|---|---|---|
1420508BH | 2" (DN50) | 8.4 lb | 00670750967054 |
color | bronze |
---|---|
materials | bronze (ASTM B584-C84400) |
finishing | none |
manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
connection type | MPT - male thread conical (NPT), FPT - female thread conical (NPT) |
product group | valves (safety relief valve) |
---|---|
ETIM class | EC011311 Safety valve |
brand | Apollo Valves |
series | 14-200 - Steam Relief Valves |
product type | 1420X |
unsps | 40141604 |
label | value |
---|---|
ETIM class | EC011311 Safety valve |
Housing material | Bronze |
Connection 1 | External thread conical (NPT) |
Nominal diameter connection 1 | 2 inch (50) |
Outer pipe diameter connection 1 | 60.33mm |
Outer pipe diameter connection 1 (imperial) | 2.38" |
Connection 2 | Internal thread conical (NPT) |
Nominal diameter connection 2 | 2 inch (50) |
Outer pipe diameter connection 2 | 60.33mm |
Outer pipe diameter connection 2 (imperial) | 2.38" |
Surface protection | Untreated |
Height | 0mm |
Suitable for heating | No |
Suitable for cooling | No |
Suitable for solar heating | No |
Suitable for hot tap water | No |
