article: 77CLF30701A
potable water
industry
utility
CRN
NSF
label
value
label
d1
value
48.3
label
DN1
value
1-1/2"
label
l1
value
81
label
z1
value
63
label
d2
value
48.3
label
DN2
value
1-1/2"
label
l2
value
52
label
z2
value
35
label
M1
value
25
label
M2
value
137
label
E
value
27
label
Y
value
18
label
V
value
56
label
U
value
30
label
D1
value
88
article

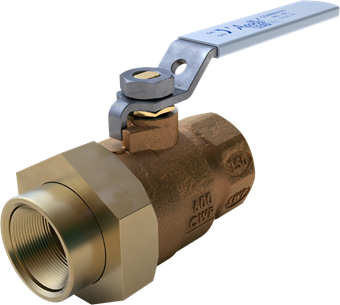

Apollo Bronze 2 Piece Full Port Ball Valve with Standard Configuration 1-1/2" (2 x Union FNPT)
article number with gtin
77CLF30701A (00670750730733)
product number with gtin
77CLF30701A (00670750730733)
manufacturer
Aalberts integrated piping systems Americas, Inc. (Apollo)
size
1-1/2"
weight
4.96 lb
dimensions
5.55x1.59x2.71 "
packaging
Carton (1 pce)
color
yellow, bronze
materials
bronze (C89836 (lead-free))
finishing
none
shape
straight
connection type
FPT - female thread conical (NPT), FPT - female thread conical (NPT)
sealing
PTFE
Bore
38.1 mm (Yes)
max operating pressure liquid
600 psi
product group
valves (PTFE)
ETIM class
EC011343 Ball valvecountry of origin
United States
brand
Apollo
series
77C Series Ball Valves
product type
77CLF30X01A
unsps
40141607
label
value
label
etim-class
value
EC011343 Ball valvelabel
Housing material
value
Bronze
label
Surface protection housing
value
None
label
Material ball
value
Brass
label
Material spindle
value
Brass
label
Material primary spindle seal
value
Polytetrafluoroethylene (PTFE)
label
Nominal diameter connection 1
value
DN 40
label
Outer pipe diameter connection 1
value
48.26mm
label
Outer pipe diameter connection 1 (imperial)
value
1.9"
label
Connection 1
value
Internal thread conical (NPT)
label
Nominal diameter connection 2
value
DN 40
label
Outer pipe diameter connection 2
value
48.26mm
label
Outer pipe diameter connection 2 (imperial)
value
1.9"
label
Connection 2
value
Internal thread conical (NPT)
label
Sealing
value
Polytetrafluoroethylene (PTFE)
label
With filter
value
No
label
With thermometer
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medically clean
value
No
label
Grease-free
value
No
label
Housing construction
value
2-part
label
Full bore
value
Yes
label
Length of connection 1
value
80.52mm
label
Length of connection 1 (imperial)
value
3.17"
label
Working length connection 1
value
63.25mm
label
Working length connection 1 (imperial)
value
2.49"
label
Length of connection 2
value
52.07mm
label
Length of connection 2 (imperial)
value
2.05"
label
Working length connection 2
value
34.8mm
label
Working length connection 2 (imperial)
value
1.37"
label
Handle height
value
17.78mm
label
Handle height (imperial)
value
0.7"
label
Handgrip length
value
24.89mm
label
Handgrip length (imperial)
value
0.98"
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
