article: 7510341
This Apollo ball valve meets OSHA standards and provides for easy, safe maintenance of pneumatic tools. Valve can be padlocked in the OPEN or CLOSED position with the same hardware.

compressed air
utility
industry

CRN
label
value
label
DN1
value
1/2"
label
DN2
value
1/2"
color
yellow, bronze
materials
bronze (ASTM B584-C84400)
finishing
none
shape
straight
connection type
FPT - female thread conical (NPT)
product group
valves (ball valves)
ETIM class
EC011343 Ball valve
country of origin
United States
brand
Apollo
series
75 Series Ball Valves
product type
7510X41
unsps
40141607
article

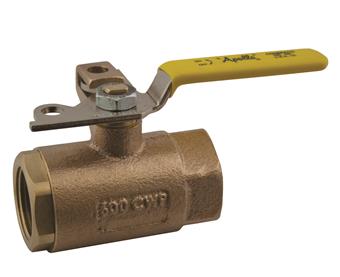

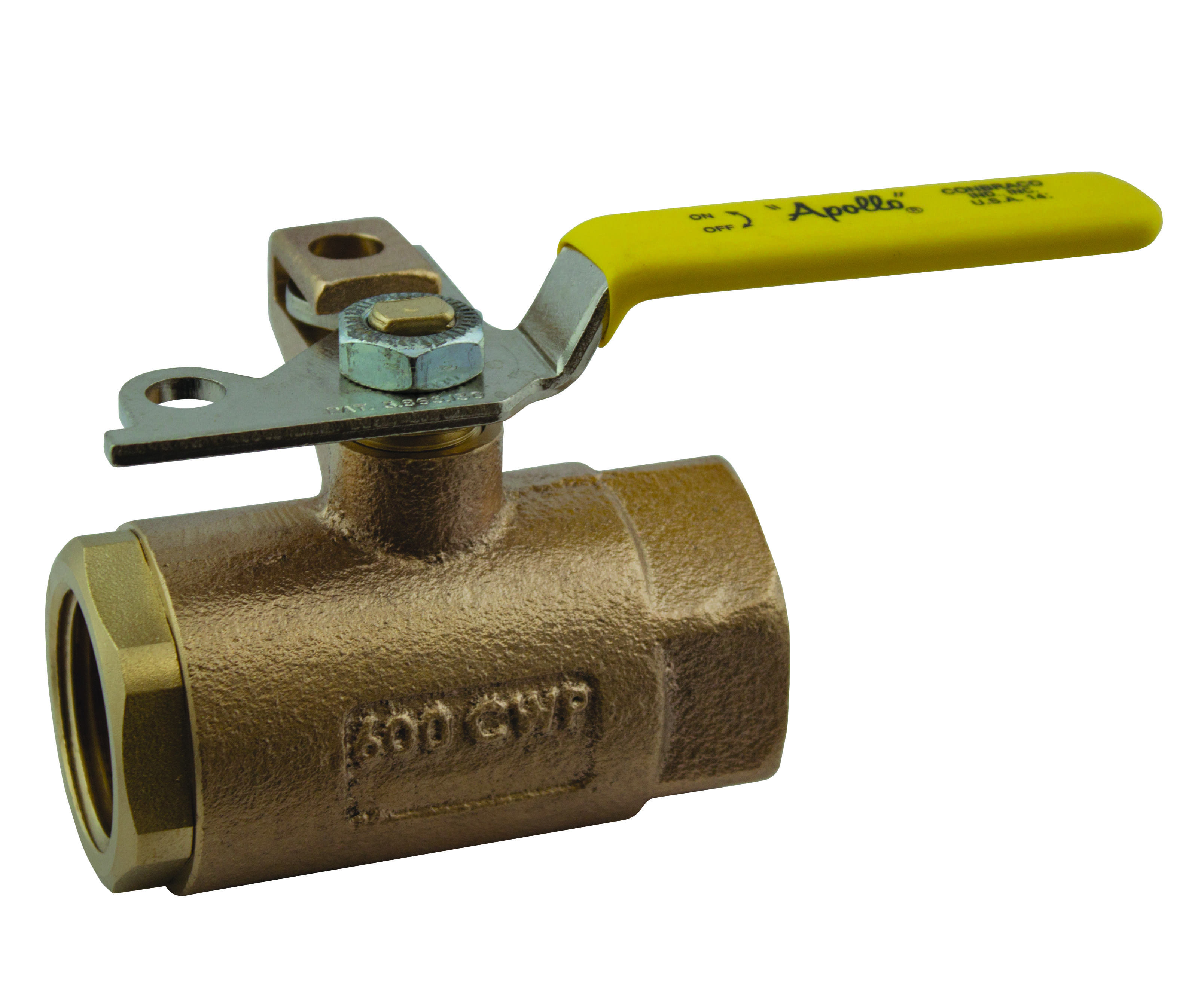

Apollo Bronze 2 Piece Standard Port Locking Ball Valve with Automatic Drain 1/2" (2 x FNPT)
article number with gtin
7510341 (00670750691188)
product number with gtin
7510341 (00670750691188)
manufacturer
Aalberts integrated piping systems Americas, Inc. (Apollo)
item group
7510X41 - Apollo Bronze 2 Piece Standard Port Locking Ball Valve with Automatic Drain (2 x FNPT)
size
1/2"
weight
0.77 lb
dimensions
5.49x1.59x3.00 "
packaging
Carton (1 pce)
max operating pressure liquid
600 psi
label
value
label
ETIM class
value
label
Housing material
value
Bronze
label
Surface protection housing
value
None
label
Material ball
value
Brass
label
Material spindle
value
Brass
label
Nominal diameter connection 1
value
DN 15
label
Connection 1
value
Internal thread conical (NPT)
label
With coupling connection 1
value
No
label
Nominal diameter connection 2
value
DN 15
label
Connection 2
value
Internal thread conical (NPT)
label
With coupling connection 2
value
No
label
With filter
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medically clean
value
No
label
Grease-free
value
No
label
Housing construction
value
2-part
label
Full bore
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
