article: 7344701
heating
cooling
steam
compressed air
vacuum
utility
industry
UL
Made in USA
Build America Buy America (BABA) Act
American Iron & Steel (AIS)
Buy American Act (BAA)
label
value
label
DN1
value
1-1/2"
label
DN2
value
1-1/2"
article

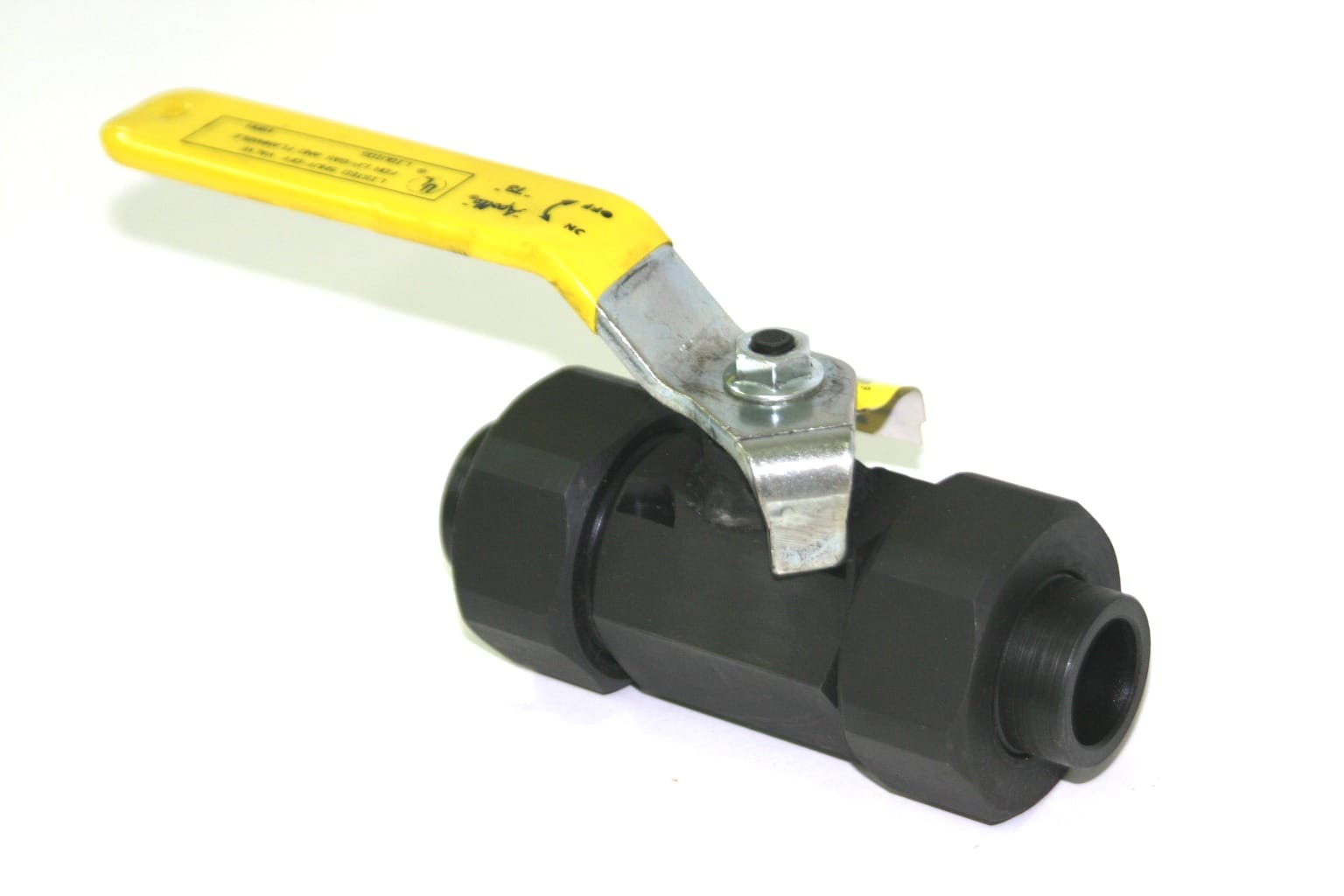

Apollo Carbon Steel Standard Port Ball Valve with 316 SS Ball & Stem, Standard Configuration 1-1/2" (2 x Union Socket Weld)
article number with gtin
7344701 (00670750690259)
product number with gtin
7344701 (00670750690259)
manufacturer
Aalberts integrated piping systems Americas, Inc. (Apollo)
size
1-1/2"
weight
14.83 lb
dimensions
8.12x1.18x3.68 "
packaging
Carton (1 pce)
color
black
materials
steel (ASTM A108-CS)
finishing
none
shape
straight
connection type
solder, solder
max operating pressure liquid
3000 psi
product group
valves ()
ETIM class
EC011343 Ball valvecountry of origin
United States
brand
Apollo
series
73 Series Ball Valves
product type
7344X01
unsps
40141607
label
value
label
etim-class
value
EC011343 Ball valvelabel
Housing material
value
Steel
label
Surface protection housing
value
None
label
Material ball
value
Stainless steel
label
Material spindle
value
Stainless steel
label
Nominal diameter connection 1
value
DN 40
label
Connection 1
value
Soldered sleeve
label
With coupling connection 1
value
No
label
Nominal diameter connection 2
value
DN 40
label
Connection 2
value
Soldered sleeve
label
With coupling connection 2
value
No
label
With filter
value
No
label
With thermometer
value
No
label
FM quality mark
value
No
label
UL quality mark
value
Yes
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medically clean
value
No
label
Grease-free
value
No
label
Housing construction
value
2-part
label
Full bore
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
