article: 123457463

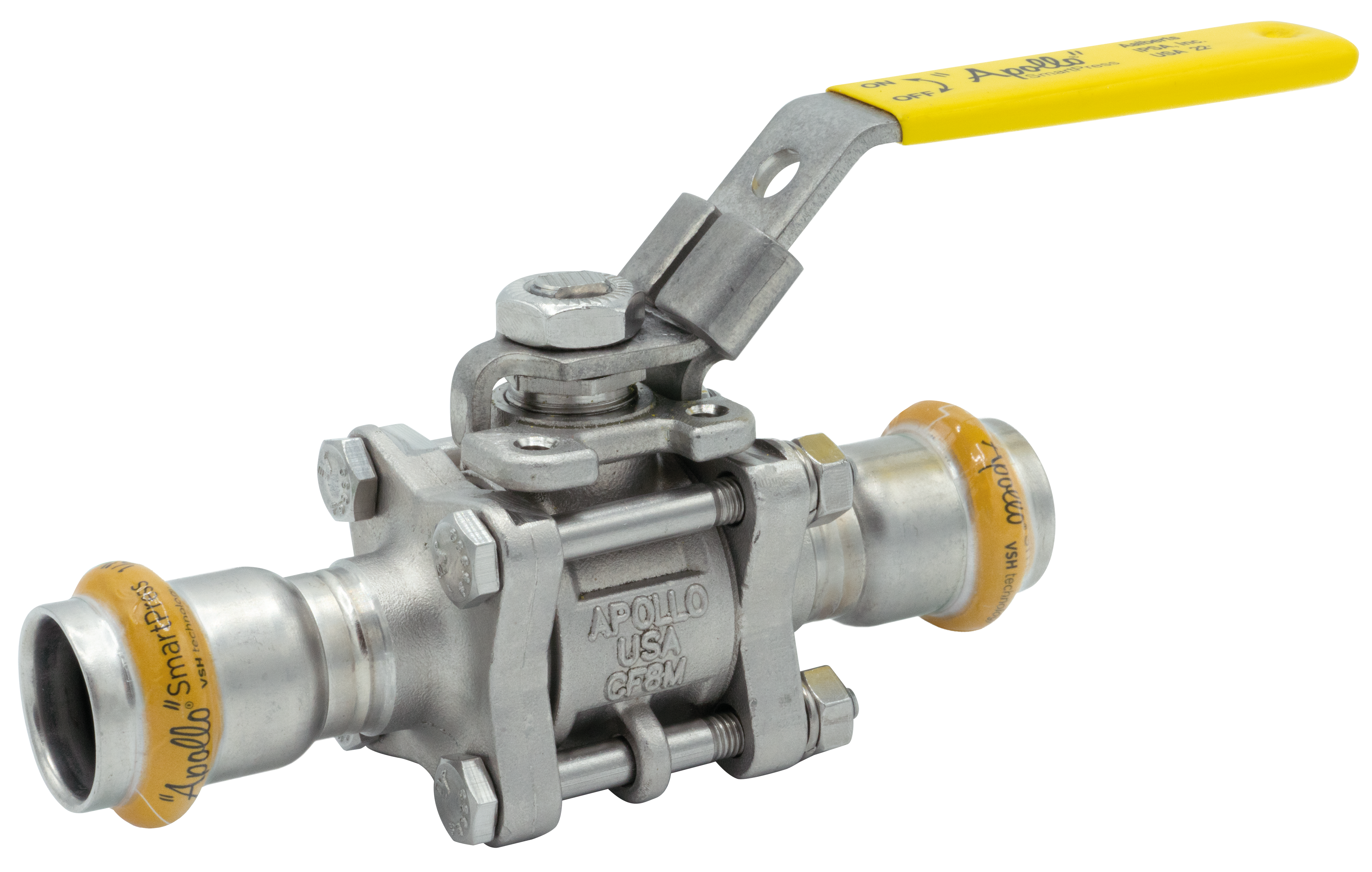

Introducing the 86VH3-Piece Ball Valve, a high-performance valve with a robust stainless steel AISI316 construction. This versatile and durable valve is designed with SmartPressstainless press connections and a compact lay-length for easy installation.
Key features of the86VH 3-Piece Ball Valve include:
• 3-Piece, Easy toMaintain Design: In-line repairable
• HNBR SealingElement: Patented for superior performance
• Visu-control® Foil(VCF): Enhanced visual inspection
• Stainless SteelAISI 316: Lasting durability
• 100% Full Port:Optimized flow performance
• Max Pressure 500psi (34.5 bar): High-pressure compatibility
• OperatingTemperature Range: -30 to 100°C
• Leak BeforePress-function: Reliable and secure connections
• PTFE AdjustablePacking: Tight seal and extended lifespan
• ISO 5211 ActuatorMounting Pad: Simplified actuator installation
potable water
heating
cooling
compressed air
industry
utility
NSF/ANSI 372
NSF/ANSI 61
IAPMO/ANSI Z1157
label
value
label
d1
value
33.7
label
DN1
value
1"
label
l1
value
87
label
z1
value
54
label
d2
value
33.7
label
DN2
value
1"
label
l2
value
87
label
z2
value
54
label
M1
value
24
label
M2
value
155
label
Y
value
26
label
V
value
50
label
U
value
33
label
a
value
90
article

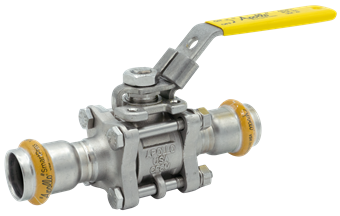

Apollo SmartPress AISI316 3 Piece Ball Valve HNBR FF 1"
article number with gtin
123457463 (00191988144630)
product number with gtin
123457463 (00191988144630)
manufacturer
Aalberts integrated piping systems Americas, Inc. (Apollo)
size
1"
weight
3.42 lb
dimensions
9.57x2.20x4.09 "
packaging
Carton (3 pce)
color
silver
materials
stainless steel (Stainless steel 316L (1.4404))
finishing
none
shape
straight
connection type
press (V), press (V)
sealing
HNBR
max operating pressure liquid
500 psi
min. medium temperature
-22 °F
max medium temperature
212 °F
peak medium temperature
230 °F
Kvs-value
59
product group
valves (HNBR)
ETIM class
EC011343 Ball valvecountry of origin
United States
brand
Apollo
series
86V Series SmartPress Ball Valves
product type
86VH
unsps
40141607
label
value
label
etim-class
value
EC011343 Ball valvelabel
Housing material
value
Stainless steel
label
Material quality
value
Stainless steel 316 (1.4401)
label
Surface protection housing
value
None
label
Material ball
value
Stainless steel
label
Material spindle
value
Stainless steel
label
Material primary spindle seal
value
Polytetrafluoroethylene (PTFE)
label
Nominal diameter connection 1
value
1 inch (25)
label
Outer pipe diameter connection 1
value
33.7mm
label
Outer pipe diameter connection 1 (imperial)
value
1.34"
label
Connection 1
value
Press sleeve
label
With coupling connection 1
value
No
label
Contour code connection 1
value
V
label
Nominal diameter connection 2
value
1 inch (25)
label
Outer pipe diameter connection 2
value
33.7mm
label
Outer pipe diameter connection 2 (imperial)
value
1.34"
label
Connection 2
value
Press sleeve
label
With coupling connection 2
value
No
label
Contour code connection 2
value
V
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
Model
value
Straight
label
With insulation shell
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-30°C - 100°C
label
Medium temperature (continuous) (imperial)
value
-22°F - 212°F
label
Medically clean
value
No
label
Grease-free
value
No
label
Operation
value
Lever handle
label
Housing construction
value
3-part
label
Full bore
value
Yes
label
Kvs value
value
59
label
Length of connection 1
value
86.92mm
label
Length of connection 1 (imperial)
value
3.42"
label
Working length connection 1
value
53.57mm
label
Working length connection 1 (imperial)
value
2.22"
label
Length of connection 2
value
86.92mm
label
Length of connection 2 (imperial)
value
3.42"
label
Working length connection 2
value
53.57mm
label
Working length connection 2 (imperial)
value
2.22"
label
Handle height
value
25.51mm
label
Handle height (imperial)
value
1.04"
label
Handgrip length
value
23.99mm
label
Handgrip length (imperial)
value
0.94"
label
Angle of the valve
value
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
