article: 10077782
potable water
heating
cooling
compressed air
vacuum
steam
industry
utility
IAPMO/ANSI/CAN Z1117
ICC LC1002
CRN
NSF/ANSI 372
NSF/ANSI 61

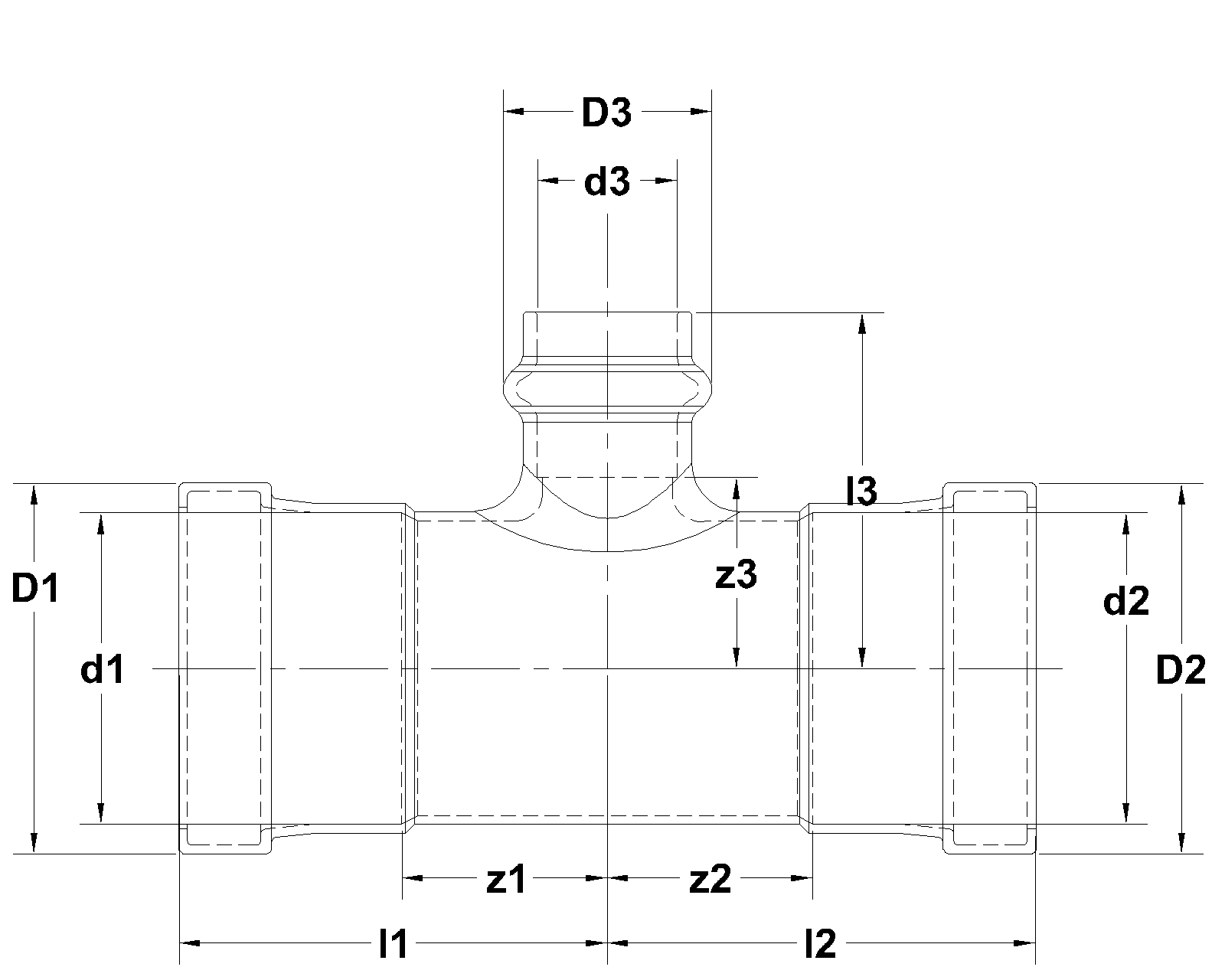

label
value
label
d1
value
104.9
label
DN1
value
4"
label
l1
value
112
label
z1
value
48
label
d2
value
66.7
label
DN2
value
4"
label
l2
value
112
label
z2
value
48
label
d3
value
104.8
label
DN3
value
2-1/2"
label
l3
value
116
label
z3
value
67
article

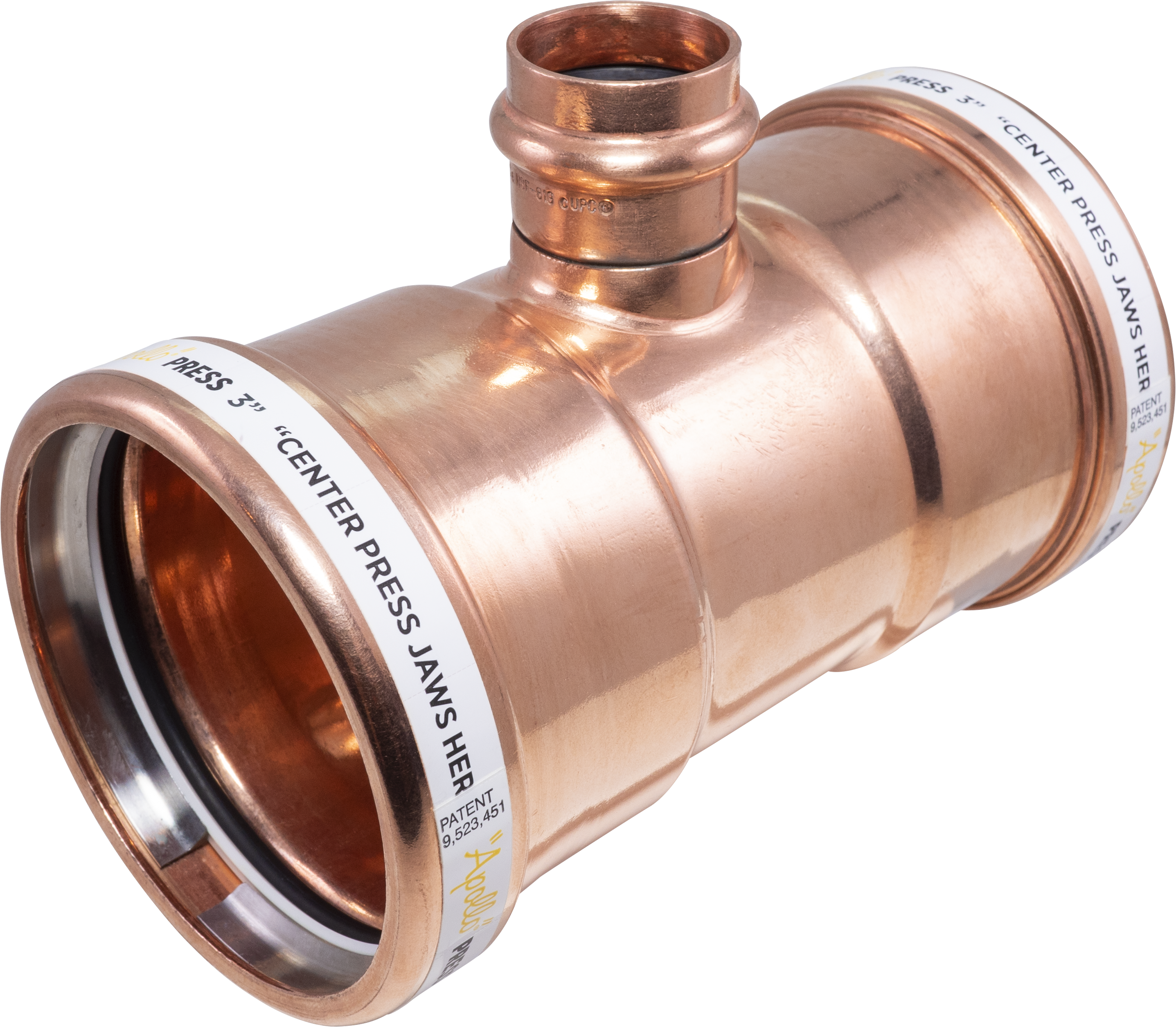

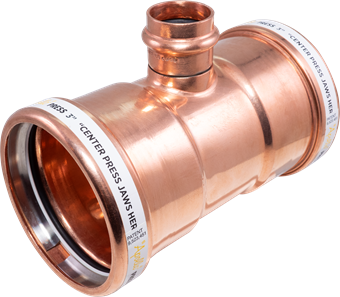

ApolloPress tee - reducing PxPxP 4"x4"x2 1/2"
article number with gtin
10077782 (00683264777828)
product number with gtin
10077782 (00683264777828)
manufacturer
Aalberts integrated piping systems Americas, Inc. (Apollo)
predecessor
10062078 (00683264620780)size
4" x 4" x 2 1/2"
weight
5.26 lb
dimensions
6.91x9.84x4.70 "
color
copper
materials
copper (CW024A (UNS C12200))
finishing
none
shape
T-piece, reducer, 90
connection type
press (V), press (V), press (V)
sealing
EPDM
max operating pressure liquid
300 psi
min. medium temperature
32 °F
max medium temperature
250 °F
product group
fittings (EPDM)
ETIM class
EC003025 Fitting with 3 connectionscountry of origin
Hungary
brand
Apollo
series
ApolloPress
product type
811R.XL
unsps
40174612
label
value
label
etim-class
label
Material connection 1
value
Copper
label
Material quality connection 1
value
Cu-DHP (CW024A)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Copper
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Material connection 3
value
Copper
label
Material quality connection 3
value
Cu-DHP (CW024A)
label
Surface protection connection 3
value
Untreated
label
Surface treatment connection 3
value
Untreated
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
Yes
label
Multi-part
value
No
label
System specific
value
No
label
Nominal diameter connection 1
value
4 inch (100)
label
Outer pipe diameter connection 1
value
104.9mm
label
Outer pipe diameter connection 1 (imperial)
value
4.13"
label
Wall thickness, connection 1
value
2.54mm
label
Wall thickness, connection 1 (imperial)
value
0.1"
label
Connection 1
value
Press sleeve
label
Contour code connection 1
value
V
label
Nominal diameter connection 2
value
4 inch (100)
label
Outer pipe diameter connection 2
value
66.68mm
label
Outer pipe diameter connection 2 (imperial)
value
4.13"
label
Wall thickness, connection 2
value
2.54mm
label
Wall thickness, connection 2 (imperial)
value
0.1"
label
Connection 2
value
Press sleeve
label
Contour code connection 2
value
V
label
Nominal diameter connection 3
value
2 1/2 inch (65)
label
Outer pipe diameter connection 3
value
104.77mm
label
Outer pipe diameter connection 3 (imperial)
value
2.63"
label
Connection 3
value
Press sleeve
label
Contour code connection 3
value
V
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Main colour fitting
value
Copper
label
Length of connection 1
value
111.51mm
label
Length of connection 1 (imperial)
value
4.39"
label
Working length connection 1
value
48.01mm
label
Working length connection 1 (imperial)
value
1.89"
label
Length of connection 2
value
111.51mm
label
Length of connection 2 (imperial)
value
4.39"
label
Working length connection 2
value
48.01mm
label
Working length connection 2 (imperial)
value
1.89"
label
Length of connection 3
value
115.57mm
label
Length of connection 3 (imperial)
value
4.55"
label
Working length connection 3
value
67.31mm
label
Working length connection 3 (imperial)
value
2.65"
label
Max. operating pressure at 20 °C
value
20.68bar
label
Max. operating pressure at 20 °C (imperial)
value
300psi
label
Medium temperature (continuous)
value
121.11111°C
label
Medium temperature (continuous) (imperial)
value
32°F - 250°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With thermal insulation
value
No
label
With buffer stud
value
Yes
label
Capped
value
No
label
With connection indicator
value
Yes
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
