article: 10075368
potable water
heating
cooling
compressed air
vacuum
steam
sprinkler
industry
fire protection
utility
IAPMO/ANSI/CAN Z1117
ICC LC1002
CRN
FM
UL
ULc
NSF/ANSI 372
NSF/ANSI 61

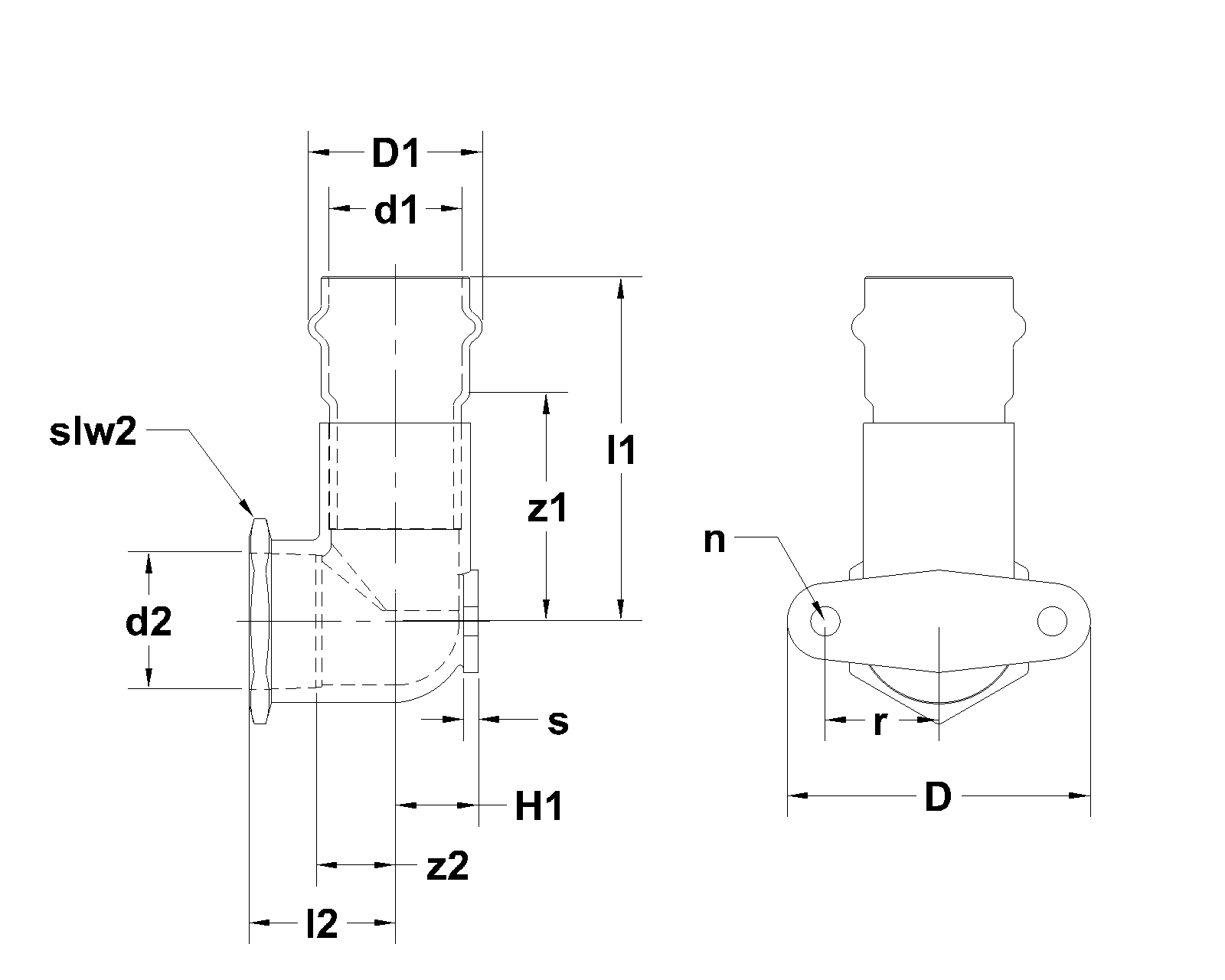

label
value
label
d1
value
22.2
label
DN1
value
3/4"
label
l1
value
68
label
z1
value
44
label
d2
value
26.7
label
DN2
value
3/4"
label
l2
value
23
label
z2
value
11
label
slw2
value
32
label
radius
value
27
label
angle
value
90
article

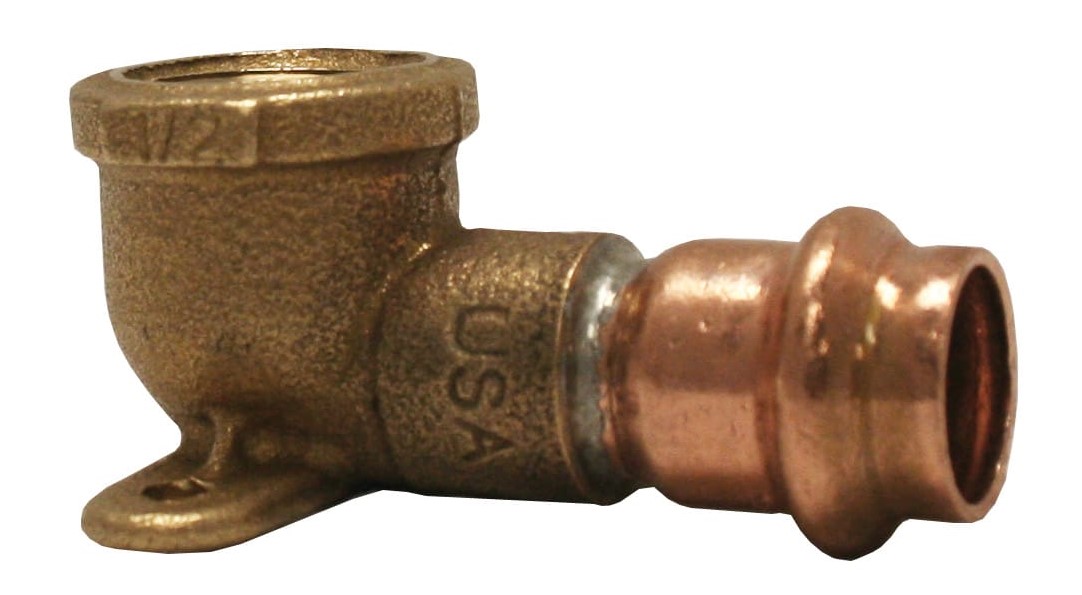

ApolloPress 90° elbow - drop ear PxFPT 3/4"
article number with gtin
10075368 (00683264753686)
product number with gtin
10075368 (00683264753686)
manufacturer
Aalberts integrated piping systems Americas, Inc. (Apollo)
size
3/4" x FPT3/4"
weight
0.46 lb
dimensions
1.62x3.28x2.34 "
color
copper, brass
materials
copper, brass (CW024A (UNS C12200), C27451 (lead-free))
finishing
none
shape
Elbow, 90
connection type
press (V), FPT - female thread conical (NPT)
sealing
EPDM
max operating pressure liquid
300 psi
min. medium temperature
32 °F
max medium temperature
250 °F
product group
fittings (EPDM)
ETIM class
EC003099 Wall platecountry of origin
United States
brand
Apollo
series
ApolloPress
product type
8707-3-5
unsps
40172812
label
value
label
etim-class
value
EC003099 Wall platelabel
Surface protection
value
Untreated
label
System specific
value
No
label
Nominal diameter connection 1
value
3/4 inch (20)
label
Outer pipe diameter connection 1
value
22.23mm
label
Outer pipe diameter connection 1 (imperial)
value
0.88"
label
Nominal diameter connection 2
value
3/4 inch (20)
label
Outer pipe diameter connection 2
value
26.67mm
label
Outer pipe diameter connection 2 (imperial)
value
0.75"
label
Connection
value
Press sleeve
label
Thread size tap connection
value
3/4 inch
label
Length of connection 1
value
67.56mm
label
Length of connection 1 (imperial)
value
2.66"
label
Working length connection 1
value
44.2mm
label
Working length connection 1 (imperial)
value
1.74"
label
Wall thickness, connection 1
value
1.4mm
label
Wall thickness, connection 1 (imperial)
value
0.06"
label
Length of connection 2
value
23.11mm
label
Length of connection 2 (imperial)
value
0.91"
label
Working length connection 2
value
10.92mm
label
Working length connection 2 (imperial)
value
0.43"
label
Length from wall plate
value
59.44mm
label
Length from wall plate (imperial)
value
2.34"
label
Medium temperature (continuous)
value
121.11111°C
label
Medium temperature (continuous) (imperial)
value
32°F - 250°F
label
Max. operating pressure at 20 °C
value
20.68bar
label
Max. operating pressure at 20 °C (imperial)
value
300psi
label
Contour code
value
V
label
With connection indicator
value
No
label
With protective cap
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
