ball valve vs gate valve: which one is right for your needs?

ball valve vs gate valve

introduction

When it comes to controlling the flow of liquids and gases, choosing the right valve is crucial. Among the various types available, ball valves and gate valves stand out due to their distinct designs and functionalities. This article provides an in-depth comparison between ball valves and gate valves, highlighting their differences, advantages, and applications.

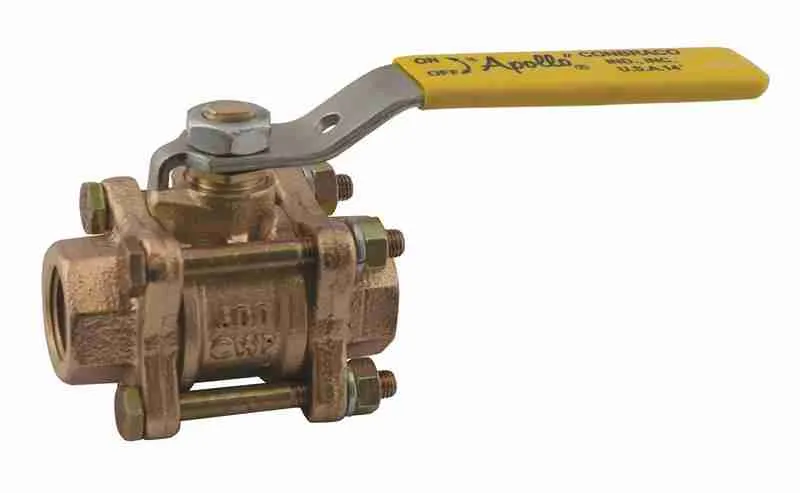

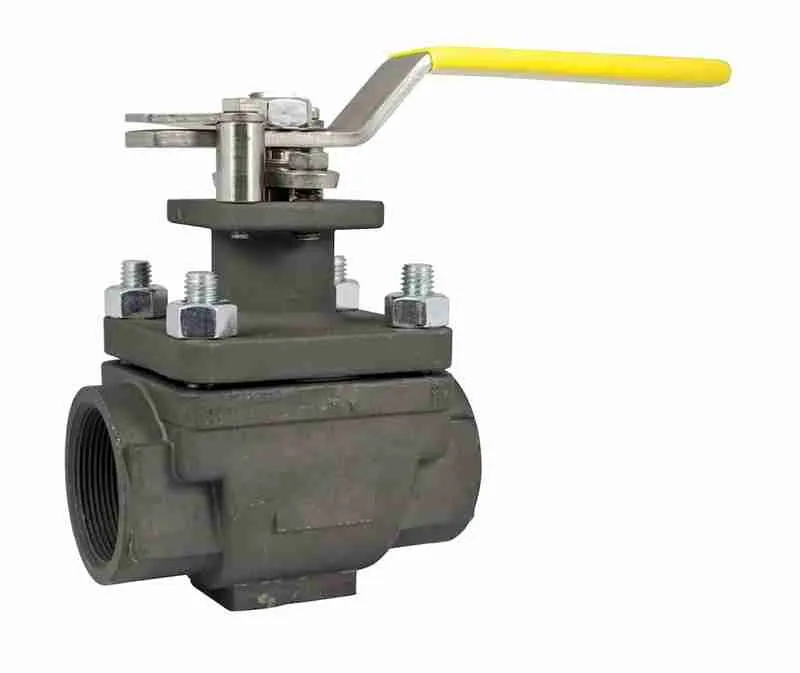

understanding ball valves

design and mechanism

Ball valves feature a simple yet effective design, utilizing a rotatable bore and a ball to regulate the flow of liquid or gases. It can allow the medium to flow through it or stop it by rotating the ball one-quarter turn (90 degrees) near its axis. consisting of a spherical disc with a hole through the middle. When the valve is open, the hole aligns with the flow direction, allowing fluid to pass through. When closed, the solid part of the ball blocks the flow.

advantages of ball valves

  • quick operation: ball valves can be opened or closed quickly with a 90-degree turn.
  • low maintenance: their design minimizes wear and tear, leading to less frequent maintenance.
  • tight seal: ball valves provide a reliable seal, reducing the risk of leaks.
  • versatility: suitable for a wide range of applications, including gases and liquids.

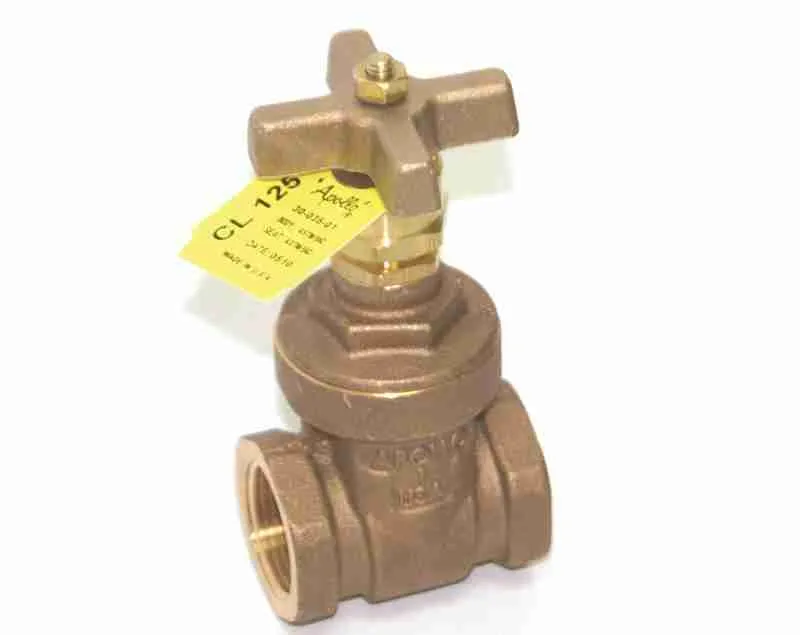

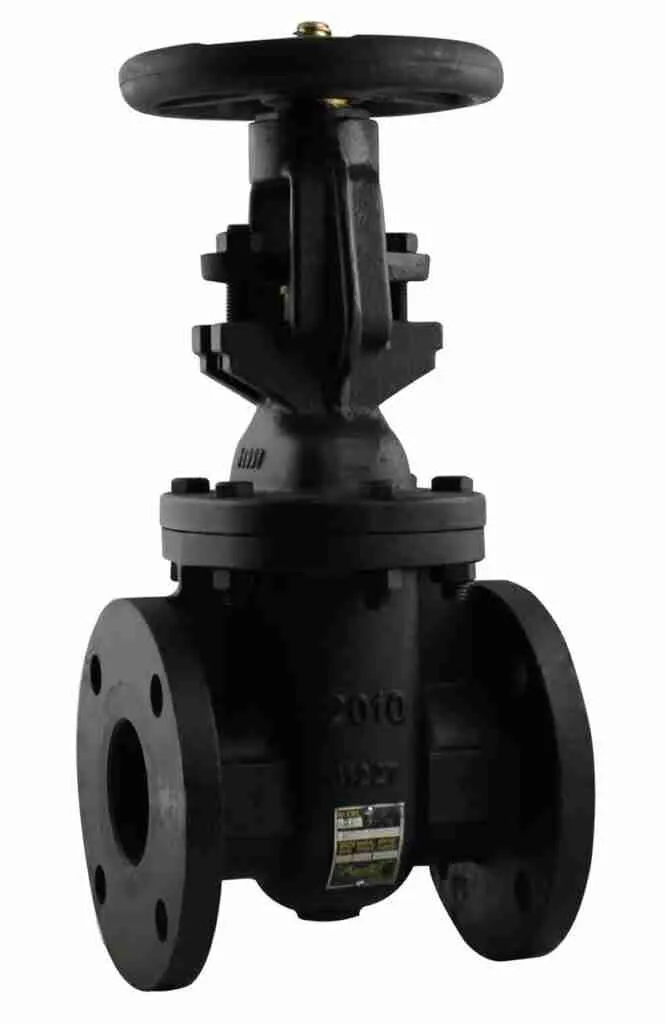

understanding gate valves

design and mechanism

Gate valves operate by lifting a gate out of the path of the fluid. The gate is usually a wedge-shaped disc that moves perpendicularly to the flow direction. This design ensures minimal flow resistance when the valve is fully open. Gate valves are often referred to as “multi-turn” valves.

advantages of gate valves

  • low flow resistance: when fully open, gate valves provide a straight path for fluid, resulting in minimal pressure drop.
  • bidirectional flow: these valves can be used in both directions, making them versatile.
  • full bore design: the unobstructed bore ensures no turbulence, which is ideal for high-velocity fluids.
  • less space: gate valves require relatively less installation space than a ball valve.

key differences between ball valves and gate valves

design and operation

  • ball valves: feature a spherical disc that rotates to open or close the valve, providing quick operation and a tight seal.
  • gate valves: utilize a rising or non-rising stem with a gate that moves up and down, best suited for applications requiring full flow or complete shut-off.

flow control

  • ball valves: ideal for on/off control but not suitable for throttling as it can cause damage to the valve.
  • gate valves: better for applications where minimal flow resistance is crucial but not ideal for precise flow control.

pressure drop

  • ball valves: typically have a higher pressure drop compared to gate valves when partially open.
  • gate valves: offer minimal pressure drop when fully open due to their straight-through flow path.

common applications of ball valves

residential plumbing

Ball valves are commonly used in residential plumbing systems for their reliability and ease of use. They are often found in shut-off applications for water lines.

industrial facility red overlay image

industrial applications

In industrial settings, ball valves are preferred for their durability and ability to handle high pressure and temperature conditions. They are used in various sectors, including manufacturing and chemical processing.

oil and gas industry

The oil and gas industry utilizes ball valves for their tight sealing and quick operation, essential for controlling the flow of hydrocarbons.

common applications of ball valves

water supply systems

Gate valves are favored in water supply systems due to their low resistance and capability for bidirectional flow, ensuring efficient water movement through extensive networks.

power plants

Gate valves are used extensively in high-pressure and high-temperature applications found in power plants, offering reliability and durability to ensure continuous, safe operations.

chemical processing

In chemical processing, gate valves handle various fluids, including corrosive substances, making them a staple in this industry.

comparing durability and maintenance

ball valves

Ball valves generally require less maintenance due to their simple design and robust construction. However, they should be regularly inspected to ensure the seals are intact and the valve operates smoothly.

gate valves

Gate valves require more maintenance, particularly in applications where they are frequently used. The gate and stem may need lubrication, and the seals should be checked regularly to prevent leaks.

cost comparison

initial cost

  • ball valves: typically more expensive upfront due to their design and materials.
  • gate valves: generally have a lower initial cost, making them a cost-effective choice for many applications.

long-term cost

  • ball valves: lower maintenance and longer lifespan can make them more cost-effective in the long run.
  • gate valves: higher maintenance needs can increase the long-term cost despite the lower initial price.

which valve to choose?

based on application

  • for on/off control: ball valves are ideal due to their quick operation and tight seal.
  • for minimal pressure drop: gate valves are preferable, especially in large-diameter piping systems.

based on cost

  • initial budget: gate valves may be the better choice for projects with tight initial budgets.
  • long-term investment: ball valves offer better long-term value due to lower maintenance costs.

based on maintenance needs

  • low maintenance preference: ball valves require less frequent maintenance.
  • regular inspection tolerable: gate valves, though needing more maintenance, can be suitable if regular inspection is manageable.

common misconceptions

ball valves and throttling

A common misconception is that ball valves can be used for throttling. However, this can cause damage to the valve and is not recommended.

gate valves and flow regulation

While gate valves are excellent for on/off control, they are not suitable for precise flow regulation, which can lead to improper system performance.

conclusion

Choosing between ball valves and gate valves depends on the specific requirements of your application. Ball valves offer quick operation and low maintenance, making them suitable for a variety of settings. Gate valves, with their low flow resistance and bidirectional flow capabilities, are ideal for systems where minimal pressure drop is essential. By understanding the differences, advantages, and applications of each valve type, you can make an informed decision that best suits your needs.

ball valves

check out all of our ball valves

gate valves

check out all of our gate valves

frequently asked questions

what is the primary function of a ball valve?

The primary function of a ball valve is to control the flow of fluids and gases by opening and closing quickly with a 90-degree turn, providing a tight seal.

can gate valves handle high-pressure applications?

Yes, gate valves are designed to handle high-pressure and high-temperature applications, making them suitable for industries like power generation and chemical processing.

are ball valves suitable for gas flow control?

Yes, ball valves are suitable for gas flow control due to their tight sealing capabilities and durability, ensuring safe and efficient operations.

how often should ball valves be maintained?

Ball valves require minimal maintenance, but they should be regularly inspected to ensure the seals remain intact and the valve operates smoothly.

which valve type is more cost-effective in the long run?

Ball valves tend to be more cost-effective in the long run due to their lower maintenance needs and longer lifespan compared to gate valves.
