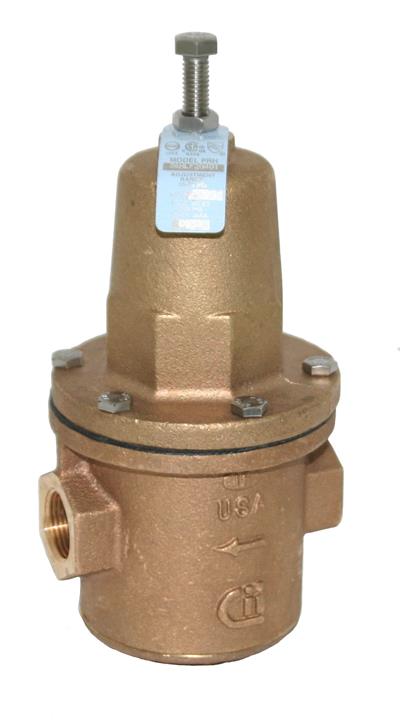

The Apollo Valves 36HLF Series Lead Free Pressure Reducing Valve is designed for commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. The valve is made with proven ASTM grade Lead Free bronze and stainless steel materials. The PRH-LF provides high capacity flow with low pressure drop. It is designed with an integral by-pass relief to protect against thermal expansion downstream. The bottom access enables easy in-line cleaning or seat replacement.
|item code||size||weight||dimensions||packaging||gtin + upc|
|36HLF20301||1/2" (DN15)||7.7 lb||4x4x9 in||Carton (1 pce)||00670750055386|
|36HLF20302||1/2" (DN15)||7.7 lb||4x4x9 in||Carton (1 pce)||00670750751332|
|36HLF20303||1/2" (DN15)||7.7 lb||4x4x9 in||Carton (1 pce)||00670750668043|
|36HLF20401||3/4" (DN20)||7.55 lb||4x4x9 in||Carton (1 pce)||00670750518638|
|36HLF20402||3/4" (DN20)||7.55 lb||4x4x9 in||Carton (1 pce)||00670750751493|
|36HLF20403||3/4" (DN20)||7.55 lb||4x4x9 in||Carton (1 pce)||00670750751509|
|36HLF20501||1" (DN25)||8.54 lb||5x5x10 in||Carton (1 pce)||00670750518973|
|36HLF20502||1" (DN25)||8.54 lb||5x5x10 in||Carton (1 pce)||00670750751271|
|36HLF20503||1" (DN25)||8.54 lb||5x5x10 in||Carton (1 pce)||00670750751516|
|36HLF20601||1-1/4" (DN32)||24 lb||6x7x13 in||Carton (1 pce)||00670750518539|
|36HLF20602||1-1/4" (DN32)||24 lb||6x7x13 in||Carton (1 pce)||00670750751639|
|36HLF20603||1-1/4" (DN32)||24 lb||6x7x13 in||Carton (1 pce)||00670750822629|
|36HLF20701||1-1/2" (DN40)||23 lb||7x7x13 in||Carton (1 pce)||00670750518546|
|36HLF20702||1-1/2" (DN40)||23 lb||7x7x13 in||Carton (1 pce)||00670750437496|
|36HLF20703||1-1/2" (DN40)||23 lb||7x7x13 in||Carton (1 pce)||00670750751646|
|36HLF20801||2" (DN50)||40 lb||8x8x16 in||Carton (1 pce)||00670750512797|
|36HLF20802||2" (DN50)||40 lb||8x8x16 in||Carton (1 pce)||00670750752599|
|36HLF20803||2" (DN50)||40 lb||8x8x16 in||Carton (1 pce)||00670750616730|
|36HLF20901||2-1/2" (DN65)||37 lb||8x8x16 in||Carton (1 pce)||00670750512780|
|36HLF20902||2-1/2" (DN65)||37 lb||8x8x16 in||Carton (1 pce)||00670750842153|
|36HLF20903||2-1/2" (DN65)||37 lb||8x8x16 in||Carton (1 pce)||00670750814907|
|36HLF20001||3" (DN80)||83 lb||10x10x19 in||Carton (1 pce)||00670750518645|
|36HLF20002||3" (DN80)||83 lb||10x10x19 in||Carton (1 pce)||00670750780998|
|36HLF20003||3" (DN80)||83 lb||10x10x19 in||Carton (1 pce)||00670750751189|
|materials||bronze (C89836 (lead-free))|
|manufacturer||Aalberts integrated piping systems Americas, Inc. (Apollo)|
|connection type||FPT - female thread conical (NPT)|
|product group||valves (pressure reducing valve)|
|ETIM class||EC010122 Pressure reducing valve|
|country of origin||United States|
|series||36HLF - Pressure Reducing Valves|
|ETIM class||EC010122 Pressure reducing valve|
|Connection 1||Internal thread conical (NPT)|
|Connection 2||Internal thread conical (NPT)|
|Max. inlet pressure||27.56bar|
|Max. inlet pressure (imperial)||400psi|
|With pressure gauge||No|
|Suitable for liquids||No|
|Suitable for steam||No|
|Suitable for gases||No|
