36E12X00SB
The Apollo 36E series Pressure Reducing Valve is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. Ideal for industrial and irrigation applications. The dezincification resistant bronze body and dielectric polymer cage provide maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.
applications
solutions
approvals
item code | size | weight | dimensions | packaging | gtin + upc |
---|---|---|---|---|---|
36E12301SB | 1/2" (DN15) | 5.9 lb | 5x3x6 in | Carton (1 pce) | 00670750554131 |
36E12601S | 1-1/4" (DN32) | 9.2 lb | 8x3x10 in | Carton (1 pce) | 00670750101007 |
36E12303SB | 1/2" (DN15) | 5.9 lb | 00191988088804 | ||
36E12401SB | 3/4" (DN20) | 6.1 lb | 5x3x6 in | Carton (1 pce) | 00670750554162 |
36E12403SB | 3/4" (DN20) | 6.1 lb | 00191988088798 | ||
36E12701SB | 1-1/2" (DN40) | 10.7 lb | 8x3x10 in | Carton (1 pce) | 00670750554315 |
36E12801SB | 2" (DN50) | 10.8 lb | 8x3x10 in | Carton (1 pce) | 00670750555213 |

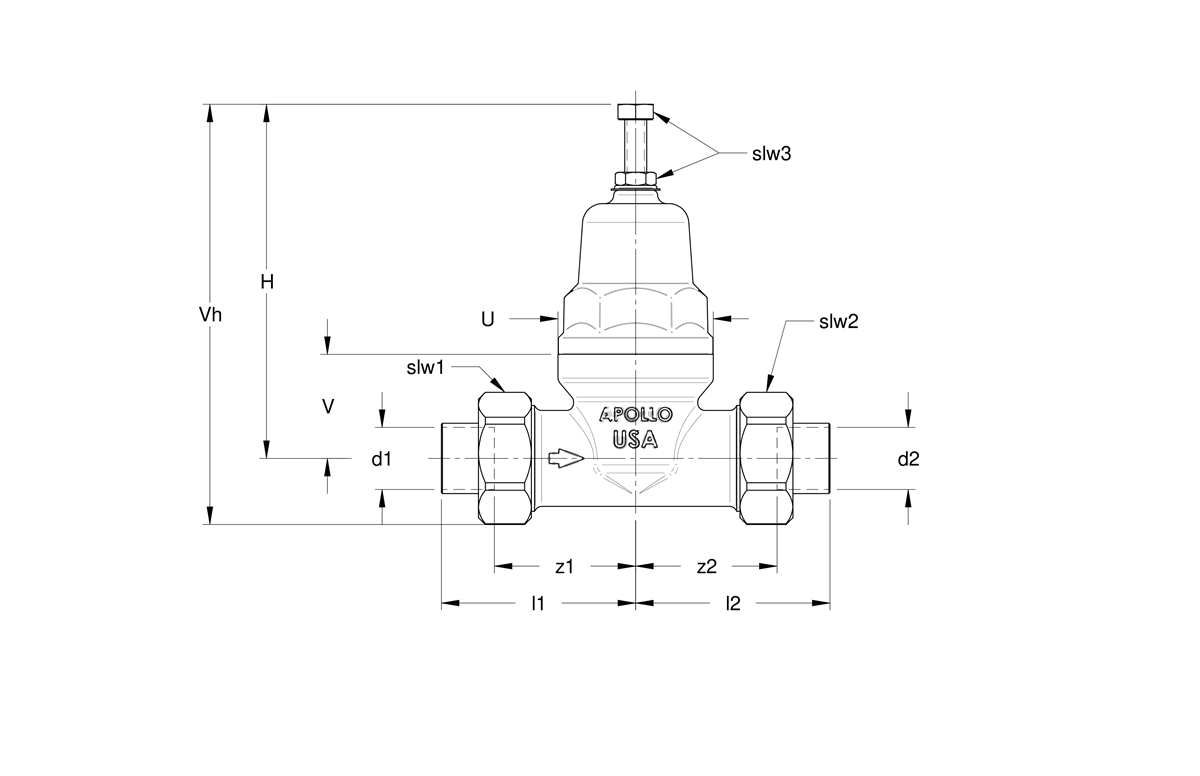

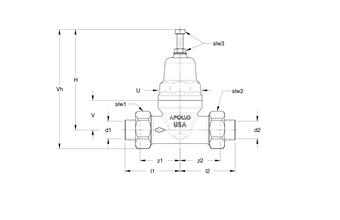

item code | size | d1 | DN1 | d2 | DN2 |
---|---|---|---|---|---|
36E12301SB | 1/2" (DN15) | 0.625 | 1/2" (DN15) | 0.625 | 1/2" (DN15) |
36E12601S | 1-1/4" (DN32) | 1.375 | 1 1/4" (DN32) | 1.375 | 1 1/4" (DN32) |
36E12303SB | 1/2" (DN15) | ||||
36E12401SB | 3/4" (DN20) | 0.875 | 3/4" (DN20) | 0.875 | 3/4" (DN20) |
36E12403SB | 3/4" (DN20) | ||||
36E12701SB | 1-1/2" (DN40) | 1.625 | 1 1/2" (DN40) | 1.625 | 1 1/2" (DN40) |
36E12801SB | 2" (DN50) | 2.125 | 2" (DN50) | 2.125 | 2" (DN50) |
color | yellow, bronze |
---|---|
materials | bronze (ASTM B584-C84400) |
finishing | none |
manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
shape | straight |
product group | valves (pressure reducing valve) |
---|---|
brand | Apollo Valves |
series | 36E - Pressure Reducing Valves |
product type | 36E12X00SB |
unsps | 40141652 |
