36CLF90X00

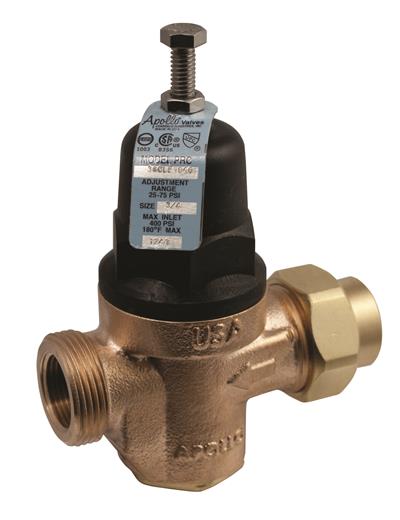

The Apollo Lead Free Pressure Reducing Valve Model PRC (36CLF Series) is designed to protect residential and commercial water distribution systems by automatically controlling excessive pressure changes. The valves integral thermoplastic cage provides maximum corrosion resistance. Designed for easy in-line servicing with bottom cleanout access to seat disc and strainer. The valve is built for long reliable service with proven ASTM grade Lead Free materials.
applications
solutions
approvals
item code | size | weight | dimensions | packaging | gtin + upc |
---|---|---|---|---|---|
36CLF90301 | 1/2" (DN15) | 2.4 lb | 5x3x6 in | Carton (1 pce) | 00670750443169 |
36CLF90302 | 1/2" (DN15) | 2.4 lb | 5x3x6 in | Carton (1 pce) | 00670750938429 |
36CLF90303 | 1/2" (DN15) | 2.4 lb | 5x3x6 in | Carton (1 pce) | 00670750938436 |
36CLF90401 | 3/4" (DN20) | 2.4 lb | 6x2x6 in | Carton (1 pce) | 00670750446542 |
36CLF90402 | 3/4" (DN20) | 2.4 lb | 6x3x6 in | Carton (1 pce) | 00670750938511 |
36CLF90403 | 3/4" (DN20) | 2.4 lb | 6x3x6 in | Carton (1 pce) | 00670750938528 |
36CLF90502 | 1" (DN25) | 2.7 lb | 6x3x6 in | Carton (1 pce) | 00670750938535 |
36CLF90503 | 1" (DN25) | 2.7 lb | 6x3x6 in | Carton (1 pce) | 00670750938542 |
color | yellow, bronze |
---|---|
materials | bronze (C89836 (lead-free)) |
finishing | none |
manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
shape | straight (0º) |
product group | valves (pressure reducing valve) |
---|---|
ETIM class | EC010122 Pressure reducing valve |
country of origin | United States |
brand | Apollo Valves |
series | 36CLF - Pressure Reducing Valves |
product type | 36CLF90X00 |
unsps | 40141652 |
label | value |
---|---|
ETIM class | EC010122 Pressure reducing valve |
Housing material | Bronze |
Surface protection | Untreated |
Max. inlet pressure | 27.56bar |
Max. inlet pressure (imperial) | 400psi |
With pressure gauge | No |
Suitable for liquids | No |
Suitable for steam | No |
Suitable for gases | No |
