34HLBOX00

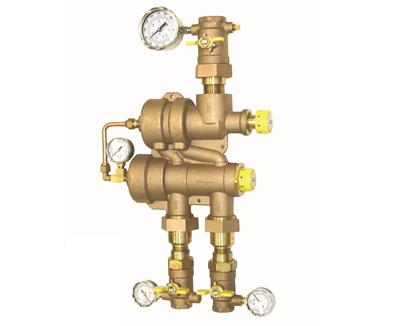

The Apollo 34HL Series Automatic Temperature Controller / HI-LO meets the new ASSE 1069 standard for multiple shower applications and the ASSE 1017 standard for point of source distribution applications. The device provides consistent temperature control to flow as low as 0.5 GPM. The MVHL is capable of low flow control without need for recirculation pumps and higher flow with parallel installation. Integral strainers and check valves are supplied at the valve inlets for added protection and long term performance.
applications
solutions
item code | size | weight | dimensions | packaging | gtin + upc |
---|---|---|---|---|---|
34HLBOX01 | 1-1/4" (DN32) | 32 lb | Carton (1 pce) | 00670750920394 |
item code | size |
---|---|
34HLBOX01 | 1-1/4" (DN32) |
materials | |
---|---|
manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
product group | valves (mixing valve) |
---|---|
ETIM class | EC011516 Thermostatic flow control valve, hot tap water |
country of origin | United States |
brand | Apollo Valves |
series | 34HL - Mixing Valves |
product type | 34HLBOX00 |
