3322001

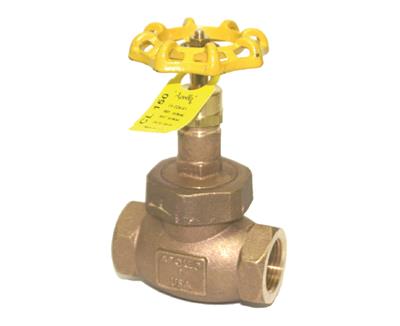

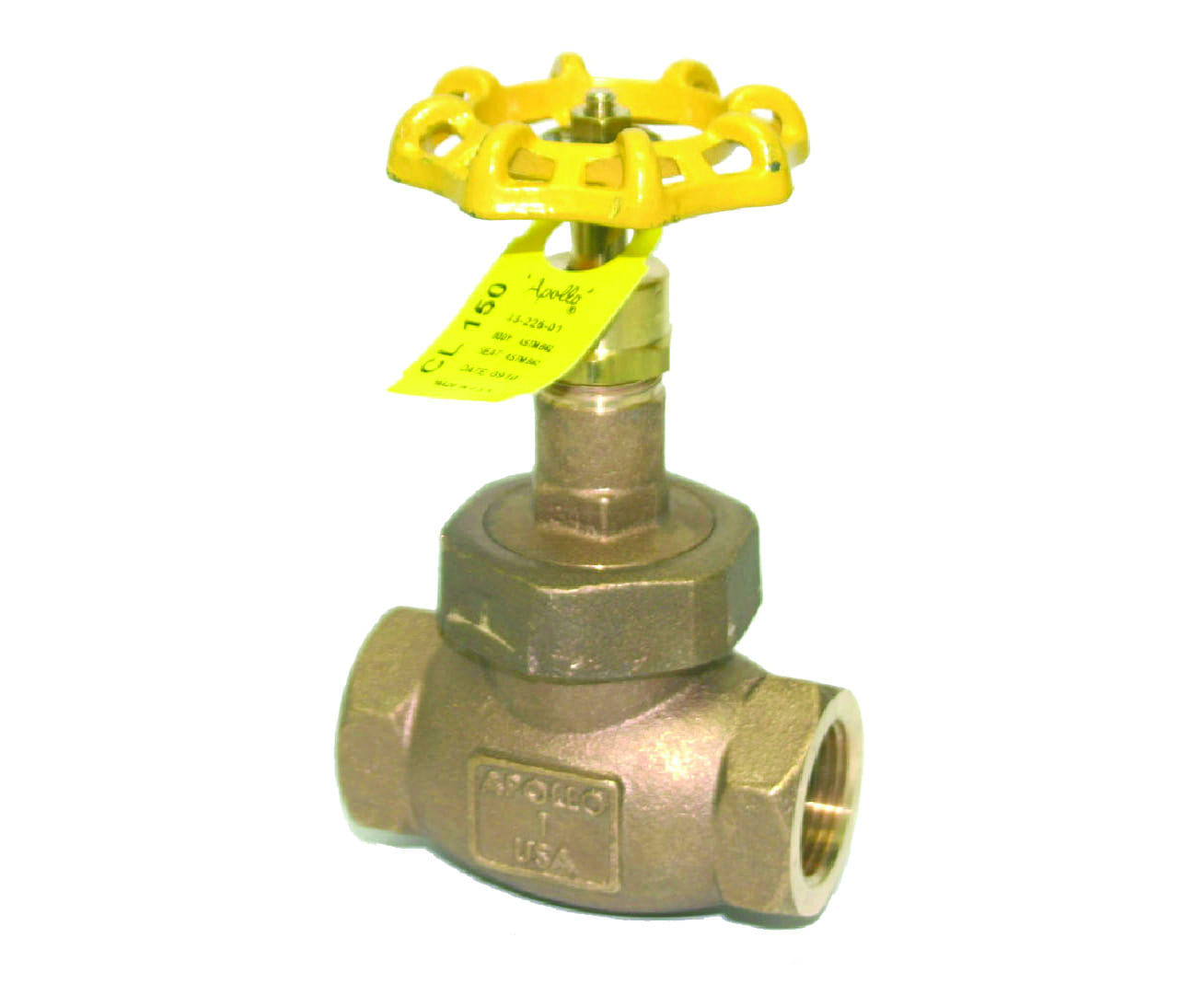

The Apollo® Model 122T (33 Series) Globe Valve provides a cost effective “Made in the USA” alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo® globe valve can reliably be installed in most plumbing and heating systems (or building service piping).
applications
solutions
approvals
item code | size | weight | dimensions | packaging | gtin + upc |
---|---|---|---|---|---|
3322101 | 1/4" (DN8) | 1.45 lb | Carton (1 pce) | 00670750655548 | |
3322201 | 3/8" (DN10) | 1.42 lb | Carton (1 pce) | 00670750655876 | |
3322301 | 1/2" (DN15) | 1.48 lb | 3x2x5 in | Carton (1 pce) | 00670750608223 |
3322401 | 3/4" (DN20) | 2.21 lb | 3x2x6 in | Carton (1 pce) | 00670750606953 |
3322501 | 1" (DN25) | 3.57 lb | 4x3x6 in | Carton (1 pce) | 00670750618055 |
3322601 | 1-1/4" (DN32) | 7.68 lb | 5x3x9 in | Carton (1 pce) | 00670750674433 |
3322701 | 1-1/2" (DN40) | 7.43 lb | Carton (1 pce) | 00670750674624 | |
3322801 | 2" (DN50) | 12.46 lb | 6x4x10 in | Carton (1 pce) | 00670750661921 |
3322901 | 2-1/2" (DN65) | 18.86 lb | Carton (1 pce) | 00670750672934 | |
3322001 | 3" (DN80) | 25.58 lb | Carton (1 pce) | 00670750656552 |
item code | size | DN1 | DN2 |
---|---|---|---|
3322101 | 1/4" (DN8) | DN8 | DN8 |
3322201 | 3/8" (DN10) | DN10 | DN10 |
3322301 | 1/2" (DN15) | DN15 | DN15 |
3322401 | 3/4" (DN20) | DN20 | DN20 |
3322501 | 1" (DN25) | DN25 | DN25 |
3322601 | 1-1/4" (DN32) | DN32 | DN32 |
3322701 | 1-1/2" (DN40) | DN40 | DN40 |
3322801 | 2" (DN50) | DN50 | DN50 |
3322901 | 2-1/2" (DN65) | DN65 | DN65 |
3322001 | 3" (DN80) | DN80 | DN80 |
color | yellow |
---|---|
materials | bronze (ASTM B62) |
manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
connection type | FPT - female thread conical (NPT) |
product group | valves (globe valve) |
---|---|
ETIM class | EC010120 Globe valve |
country of origin | United States |
brand | Apollo Valves |
series | 33 - Globe Valves |
product type | 3322001 |
unsps | 40141611 |
label | value |
---|---|
ETIM class | EC010120 Globe valve |
Housing material | Bronze |
Connection 1 | Internal thread conical (NPT) |
Connection 2 | Internal thread conical (NPT) |
Suitable for liquids | Yes |
Suitable for gases | No |
Suitable for steam | Yes |
VdS quality mark | No |
KIWA certified | No |
Gastec QA mark | No |
