215WX0CSP2FA0

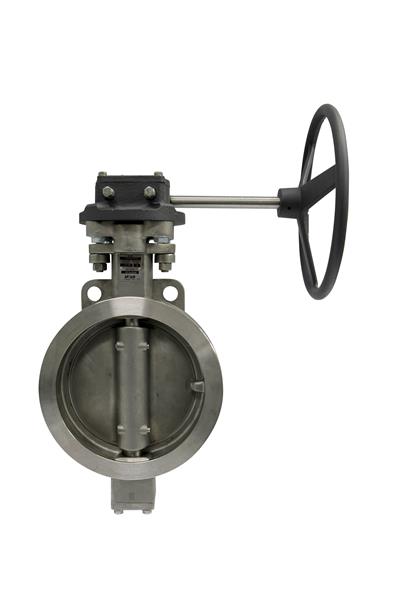

Apollo International™ 215 and 230 Series double offset high performance butterfly valves are available in wafer or lug body design. Stainless steel models are certified lead-free with stainless steel disc and 17-4PH stainless steel stem.
applications
solutions
approvals
item code | size | weight | dimensions | packaging | gtin + upc |
---|---|---|---|---|---|
215W25CSP2FA0 | 2-1/2" (DN65) | 11.78 lb | Carton (1 pce) | 00670750284779 | |
215W04CSP2FA0 | 4" (DN100) | 18.03 lb | Carton (1 pce) | 00670750083655 | |
215W05CSP2FA0 | 5" (DN125) | 24.08 lb | Carton (1 pce) | 00670750283987 | |
215W10CSP2FA0 | 10" (DN250) | 68.81 lb | Carton (1 pce) | 00670750083914 | |
215W18CSP2FA0 | 18" (DN450) | 280.24 lb | Carton (1 pce) | 00670750286209 | |
215W20CSP2FA0 | 20" (DN500) | 358.98 lb | Carton (1 pce) | 00670750286599 | |
215W24CSP2FA0 | 24" (DN600) | 577.15 lb | Carton (1 pce) | 00670750286858 |

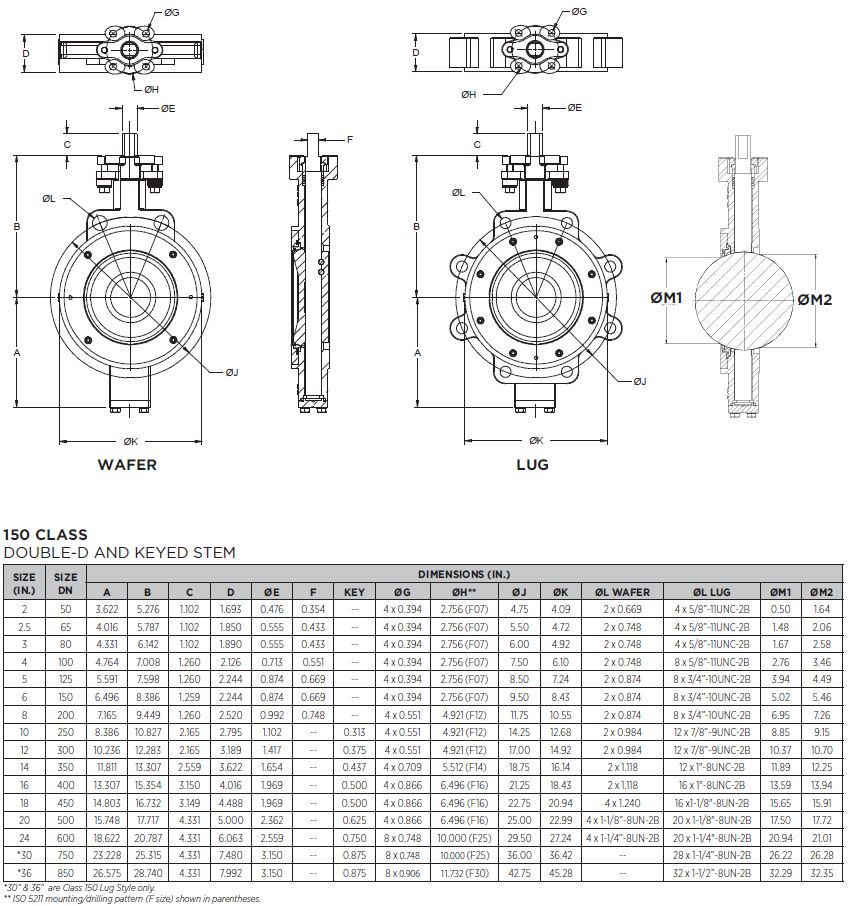

item code | size | DN1 | DN2 | n2 | k2 | d2-2 | D2 |
---|---|---|---|---|---|---|---|
215W25CSP2FA0 | 2-1/2" (DN65) | DN65 | DN65 | 4 | 139.5 | 19 | 178 |
215W04CSP2FA0 | 4" (DN100) | DN100 | DN100 | 8 | 190.5 | 19 | 229 |
215W05CSP2FA0 | 5" (DN125) | DN125 | DN125 | 8 | 216 | 22 | 254 |
215W10CSP2FA0 | 10" (DN250) | DN250 | DN250 | 12 | 362 | 25 | 406 |
215W18CSP2FA0 | 18" (DN450) | DN450 | DN450 | 16 | 578 | 32 | 635 |
215W20CSP2FA0 | 20" (DN500) | DN500 | DN500 | 20 | 635 | 32 | 698 |
215W24CSP2FA0 | 24" (DN600) | DN600 | DN600 | 20 | 749.6 | 35 | 813 |
color | silver |
---|---|
materials | steel (ASTM A216 WCB) |
finishing | none |
manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
connection type | wafer type |
product group | valves (butterfly valve) |
---|---|
ETIM class | EC010910 Butterfly valve |
country of origin | China |
brand | Apollo Valves |
series | 215L/215W - Butterfly Valves |
product type | 215WX0CSP2FA0 |
unsps | 40141620 |
label | value |
---|---|
ETIM class | EC010910 Butterfly valve |
Housing material | Steel |
Surface protection | Untreated |
Connections | Wafer type |
FM quality mark | No |
UL quality mark | No |
ULC quality mark | No |
LPCB quality mark | No |
VdS quality mark | No |
KIWA certified | No |
Gastec QA mark | No |
