119PMDK
Apollo Valves 119 Series ASME Sections I & VIII air and steam capacity certified safety valve for overpressure protection of steam power boilers, deaerators, accumulators, pressure reducing stations and pressure piping systems.
applications
solutions
approvals
item code | size | weight | dimensions | packaging | gtin + upc |
---|---|---|---|---|---|
119PMDKMAA0025 | 4" (DN100) X 6" (DN150) | 215 lb | Carton (1 pce) | 00670750113307 | |
119PMDKMAA0033 | 4" (DN100) X 6" (DN150) | 215 lb | Carton (1 pce) | 00670750085420 | |
119PMDKMAA0065 | 4" (DN100) X 6" (DN150) | 215 lb | Carton (1 pce) | 00670750444999 | |
119PMDKMAA0090 | 4" (DN100) X 6" (DN150) | 215 lb | Carton (1 pce) | 00670750272066 | |
119PMDKMAA0125 | 4" (DN100) X 6" (DN150) | 215 lb | Carton (1 pce) | 00670750358753 | |
119PMDKMAA0150 | 4" (DN100) X 6" (DN150) | 215 lb | Carton (1 pce) | 00670750866913 |

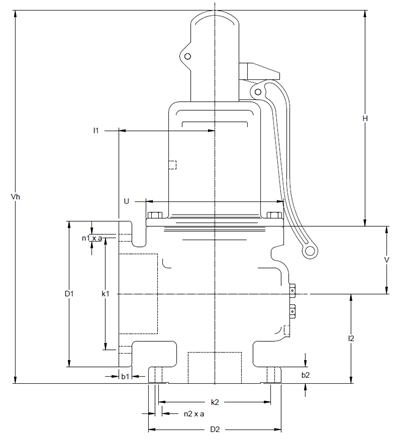

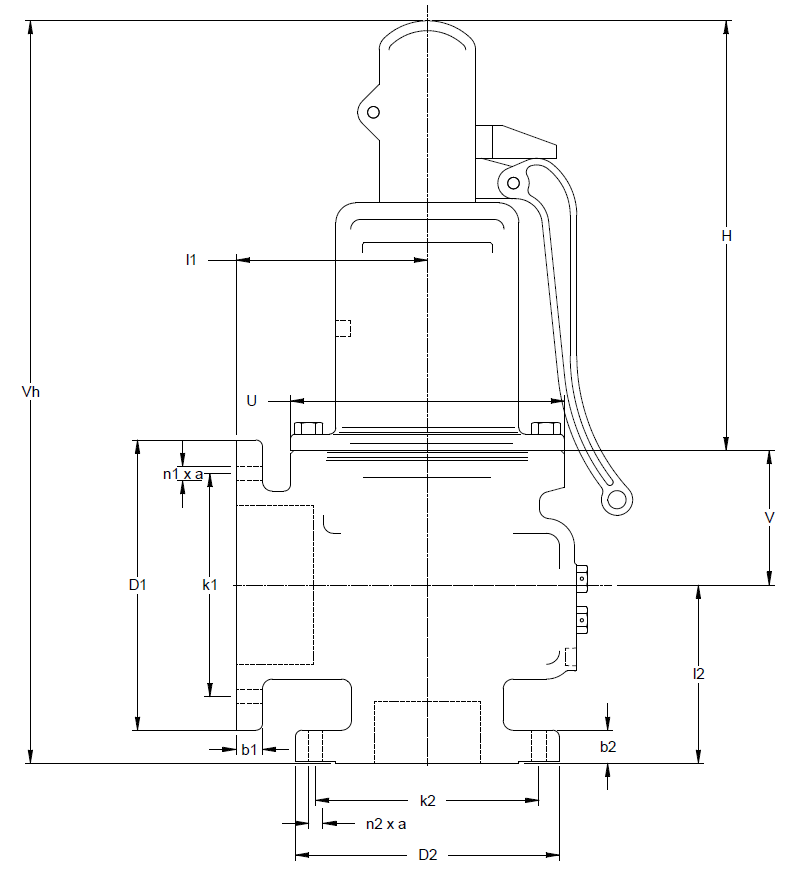

item code | size | DN1 | DN2 | n2 | k2 | d2-2 | D2 |
---|---|---|---|---|---|---|---|
119PMDKMAA0025 | 4" (DN100) X 6" (DN150) | 4" (DN100) | 6" (DN150) | 8 | 241.5 | 22 | 279 |
119PMDKMAA0033 | 4" (DN100) X 6" (DN150) | 4" (DN100) | 6" (DN150) | 8 | 241.5 | 22 | 279 |
119PMDKMAA0065 | 4" (DN100) X 6" (DN150) | 4" (DN100) | 6" (DN150) | 8 | 241.5 | 22 | 279 |
119PMDKMAA0090 | 4" (DN100) X 6" (DN150) | 4" (DN100) | 6" (DN150) | 8 | 241.5 | 22 | 279 |
119PMDKMAA0125 | 4" (DN100) X 6" (DN150) | 4" (DN100) | 6" (DN150) | 8 | 241.5 | 22 | 279 |
119PMDKMAA0150 | 4" (DN100) X 6" (DN150) | 4" (DN100) | 6" (DN150) | 8 | 241.5 | 22 | 279 |
color | grey |
---|---|
materials | cast iron (ASTM A126 Grade B) |
finishing | none |
manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
connection type | flange |
product group | valves (safety relief valve) |
---|---|
ETIM class | EC011311 Safety valve |
country of origin | United States |
brand | Apollo Valves |
series | 119 Safety Relief Valves |
product type | 119JGCA |
unsps | 40141606 |
label | value |
---|---|
ETIM class | EC011311 Safety valve |
Housing material | Cast iron |
Connection 1 | Flange |
Surface protection | Untreated |
Height | 0mm |
Suitable for heating | Yes |
Suitable for cooling | No |
Suitable for solar heating | No |
Suitable for hot tap water | No |
