10630

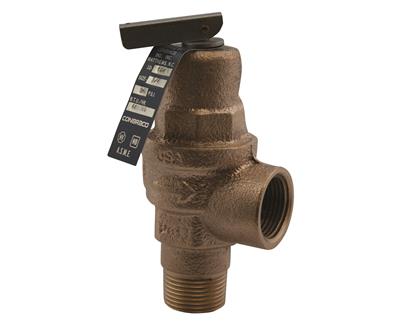

The Apollo 10-620/630 Series is an ASME Section IV capacity certified bronze safety relief valve for proetection boilers, heaters and similar equipment. It can be pre-set to any pressure ranging between 30 to 150 psig (2.1 to 10.3 bar) at 250°F (121°C) max.
applications
solutions
approvals
item code | size | weight | dimensions | packaging | gtin + upc |
---|---|---|---|---|---|
1063430 | 3/4" (DN20) | 1 lb | 3x2x5 in | Carton (1 pce) | 00670750413735 |
1063440 | 3/4" (DN20) | 1 lb | 3x2x5 in | Carton (1 pce) | 00670750416620 |
1063450 | 3/4" (DN20) | 1 lb | 3x2x5 in | Carton (1 pce) | 00670750416477 |
1063475 | 3/4" (DN20) | 1 lb | 3x2x5 in | Carton (1 pce) | 00670750413803 |
1063480 | 3/4" (DN20) | 1 lb | 3x2x5 in | Carton (1 pce) | 00670750416385 |
1063490 | 3/4" (DN20) | 1 lb | 3x2x5 in | Carton (1 pce) | 00670750614880 |
10634100 | 3/4" (DN20) | 1 lb | 3x2x5 in | Carton (1 pce) | 00670750413988 |
10634125 | 3/4" (DN20) | 1 lb | 3x2x5 in | Carton (1 pce) | 00670750413964 |
10634150 | 3/4" (DN20) | 1 lb | 3x2x5 in | Carton (1 pce) | 00670750413995 |
color | bronze |
---|---|
materials | bronze (ASTM B584-C84400) |
finishing | none |
manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
connection type | FPT - female thread conical (NPT) |
sealing | Silicone |
product group | valves (safety relief valve) |
---|---|
ETIM class | EC011311 Safety valve |
country of origin | United States |
brand | Apollo Valves |
series | 10-630 Safety Relief Valves |
product type | 10630 |
unsps | 40141606 |
label | value |
---|---|
ETIM class | EC011311 Safety valve |
Housing material | Bronze |
Connection 1 | Internal thread conical (NPT) |
Nominal diameter connection 1 | 3/4 inch (20) |
Outer pipe diameter connection 1 | 26.67mm |
Outer pipe diameter connection 1 (imperial) | 1.05" |
Connection 2 | Internal thread conical (NPT) |
Nominal diameter connection 2 | 3/4 inch (20) |
Outer pipe diameter connection 2 | 26.67mm |
Outer pipe diameter connection 2 (imperial) | 1.05" |
Max. operating pressure at 20 °C | 10.34bar |
Max. operating pressure at 20 °C (imperial) | 150psi |
Medium temperature (continuous) | 0°C - 121°C |
Medium temperature (continuous) (imperial) | 32°F - 249.8°F |
Surface protection | Untreated |

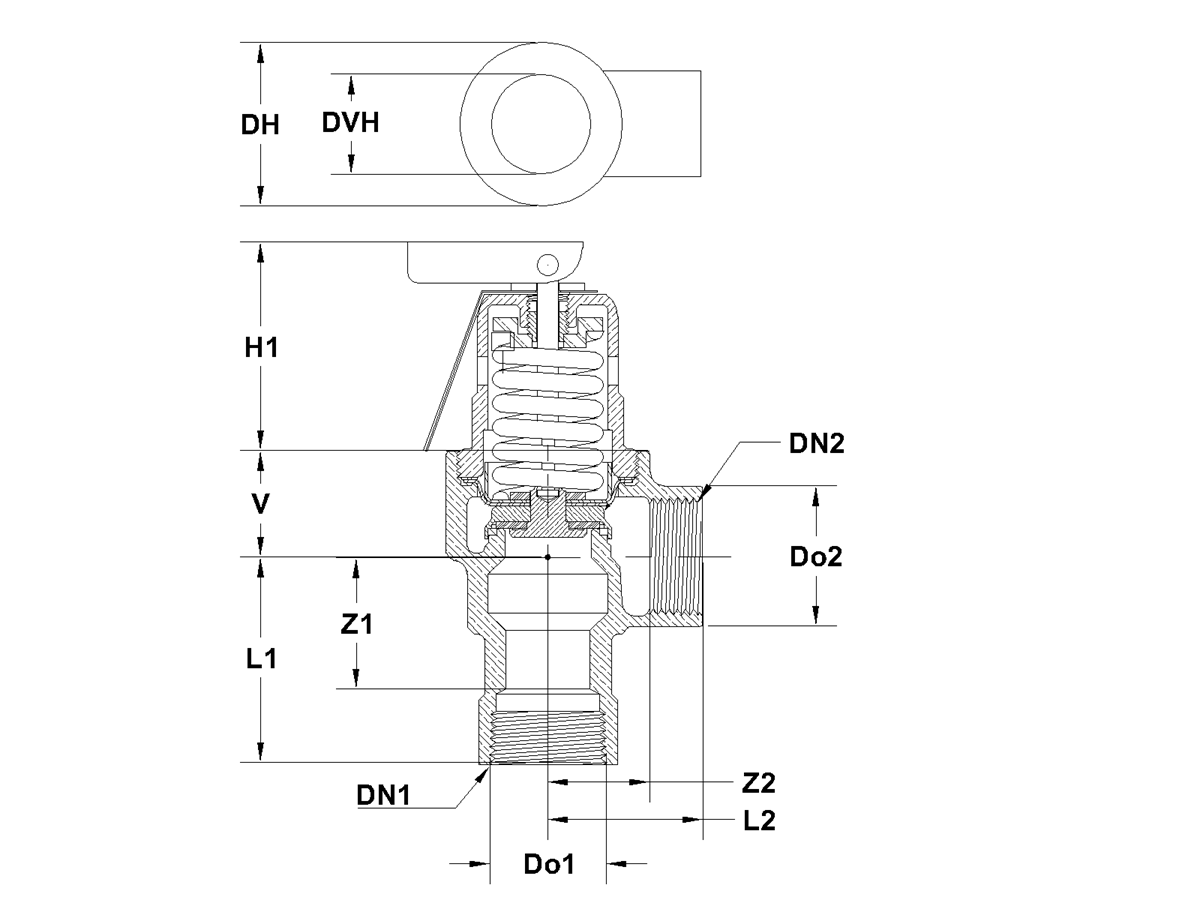

Height | 133.35mm |
Suitable for heating | Yes |
Suitable for cooling | No |
Suitable for solar heating | No |
Suitable for hot tap water | No |
