10610CE

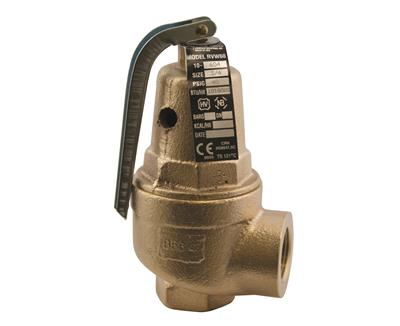

ASME Section IV capacity certified bronze safety relief valve for protection of hot water heating boilers, systems and similar equipment. It can be pre-set to any pressure ranging from 15 to 160 psig (1 to 11 bar) at 250°F (121°C) max.
applications
solutions
approvals
item code | size | weight | dimensions | packaging | gtin + upc |
---|---|---|---|---|---|
1061410CE | 3/4" (DN20) x 1" (DN25) | 2.26 lb | 3x2x5 in | Carton (1 pce) | 00670750375491 |
1061512CE | 1" (DN25) x 1-1/4" (DN32) | 3.9 lb | 4x3x7 in | Carton (1 pce) | 00670750570544 |
1061516CE | 1" (DN25) x 1-1/4" (DN32) | 3.9 lb | Carton (1 pce) | 00191988097677 | |
1061612CE | 1-1/4" (DN32) x 1-1/2" (DN40) | 7.55 lb | 4x4x9 in | Carton (1 pce) | 00670750570537 |
color | bronze |
---|---|
materials | bronze (ASTM B584-C84400) |
finishing | none |
manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
connection type | FPT - female thread conical (NPT) |
sealing | Silicone |
product group | valves (safety relief valve) |
---|---|
ETIM class | EC011311 Safety valve |
brand | Apollo Valves |
series | 10-600 - Safety Relief Valves |
product type | 10610CE |
unsps | 40141606 |
label | value |
---|---|
ETIM class | EC011311 Safety valve |
Housing material | Bronze |
Connection 1 | Internal thread conical (NPT) |
Connection 2 | Internal thread conical (NPT) |
Max. operating pressure at 20 °C | 11.03bar |
Max. operating pressure at 20 °C (imperial) | 160psi |
Medium temperature (continuous) | 0°C - 121°C |
Medium temperature (continuous) (imperial) | 32°F - 249.8°F |
Surface protection | Untreated |
Suitable for heating | Yes |
Suitable for cooling | No |
Suitable for solar heating | No |
Suitable for hot tap water | No |
