10417P

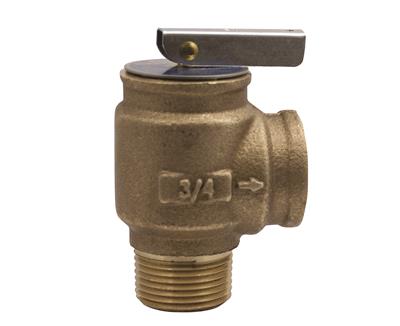

ASME Section IV capacity certified bronze safety relief valve for protection of hot water heating boilers, systems and similar equipment. It can be pre-set to any pressure ranging between 20 to 80 psig (1.4 - 5.5 bar) at 250°F (121°C) max.
applications
solutions
approvals
item code | size | weight | dimensions | packaging | gtin + upc |
---|---|---|---|---|---|
1040770 | 3/4" (DN20) | 0.62 lb | 3x2x3 in | Carton (1 pce) | 00670750493232 |
color | chrome |
---|---|
materials | bronze (ASTM B584-C84400) |
finishing | polished chrome |
manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
connection type | MPT - male thread conical (NPT), FPT - female thread conical (NPT) |
sealing | Silicone |
product group | valves (safety relief valve) |
---|---|
ETIM class | EC011311 Safety valve |
country of origin | United States |
brand | Apollo Valves |
series | 10-400 Safety Relief Valves |
product type | 10417P |
unsps | 40141606 |

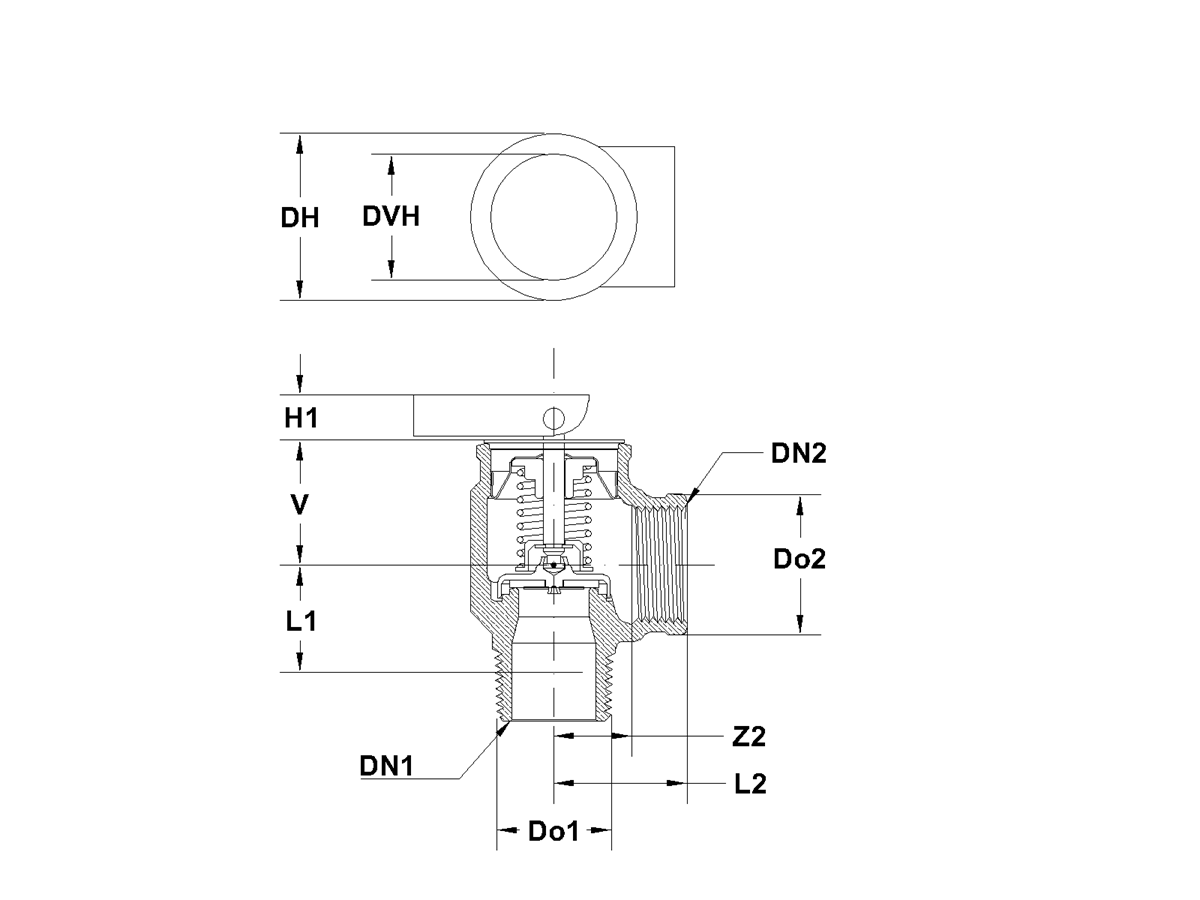

label | value |
---|---|
ETIM class | EC011311 Safety valve |
Housing material | Bronze |
Connection 1 | External thread conical (NPT) |
Nominal diameter connection 1 | 3/4 inch (20) |
Outer pipe diameter connection 1 | 26.67mm |
Outer pipe diameter connection 1 (imperial) | 1.05" |
Connection 2 | Internal thread conical (NPT) |
Nominal diameter connection 2 | 3/4 inch (20) |
Outer pipe diameter connection 2 | 26.67mm |
Outer pipe diameter connection 2 (imperial) | 1.05" |
Max. operating pressure at 20 °C | 5.52bar |
Max. operating pressure at 20 °C (imperial) | 80psi |
Medium temperature (continuous) | 0°C - 121°C |
Medium temperature (continuous) (imperial) | 32°F - 249.8°F |
Length of connection 1 | 35.31mm |
Length of connection 1 (imperial) | 1.39" |
Length of connection 2 | 30.23mm |
Length of connection 2 (imperial) | 1.19" |
Height | 76.2mm |
Suitable for heating | Yes |
Suitable for cooling | No |
Suitable for solar heating | No |
Suitable for hot tap water | No |
