10322BQ

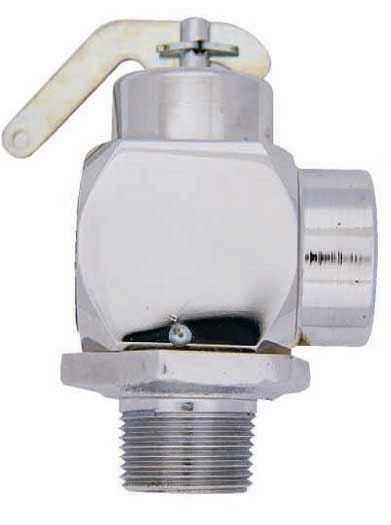

ASME Section VIII design certified safety valve to protect portable steam vessel applications such as autoclaves, sterilizers and pressure cookers against excess build-up. Made from proved ASTM grade brass with optional decorative chrome finish.
applications
solutions
approvals
item code | size | weight | dimensions | packaging | gtin + upc |
---|---|---|---|---|---|
10322B35Q | 3/4" (DN20) | 1.28 lb | 3x3x4 in | Carton (1 pce) | 00670750039737 |
10322B40Q | 3/4" (DN20) | 1.28 lb | 3x3x4 in | Carton (1 pce) | 00670750610103 |
10322B45Q | 3/4" (DN20) | 1.28 lb | 3x3x4 in | Carton (1 pce) | 00670750610110 |
10322B50Q | 3/4" (DN20) | 1.28 lb | 3x3x4 in | Carton (1 pce) | 00670750790553 |
10322B60Q | 3/4" (DN20) | 1.28 lb | 3x3x4 in | 00191988122546 |

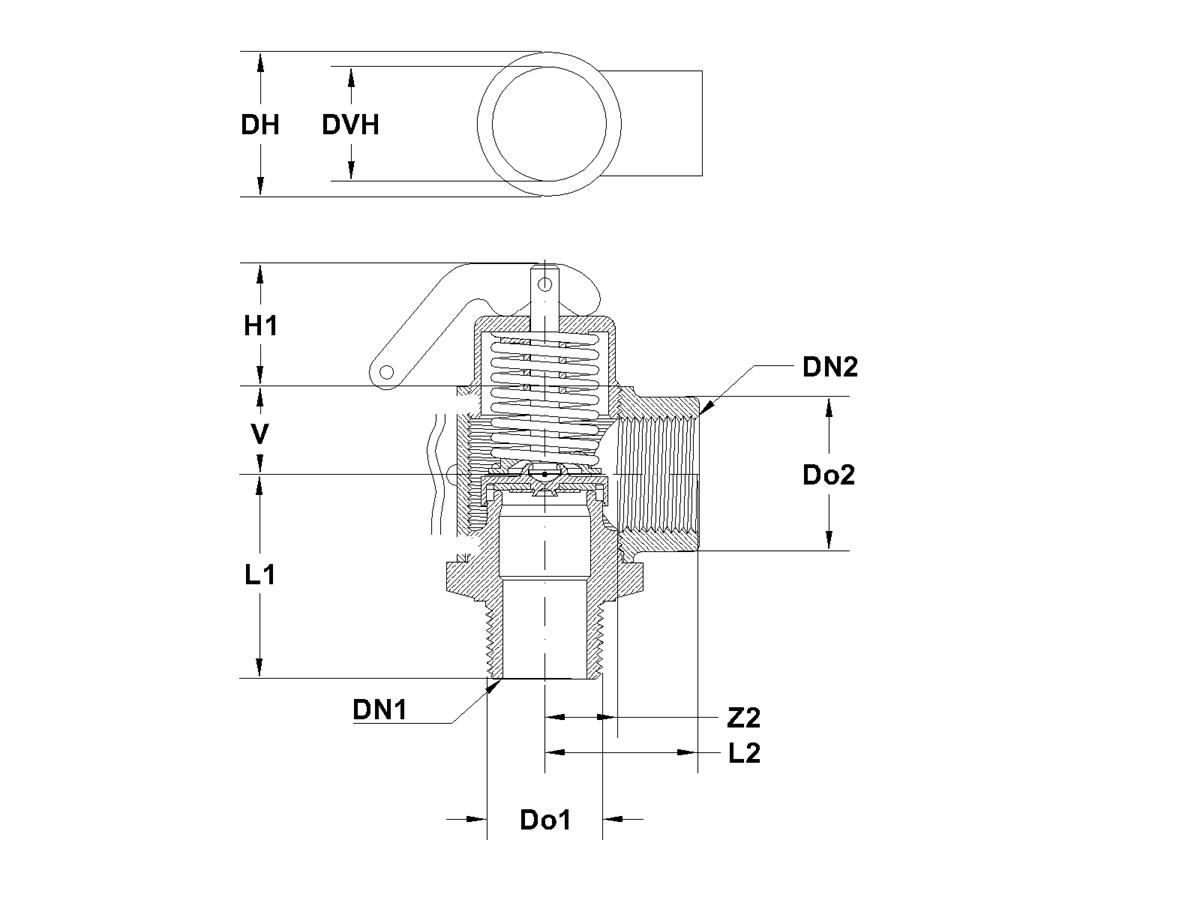

item code | size | d1 | DN1 | d2 | DN2 |
---|---|---|---|---|---|
10322B35Q | 3/4" (DN20) | 1.050 | 3/4" (DN20) | 1.050 | 3/4" (DN20) |
10322B40Q | 3/4" (DN20) | 1.050 | 3/4" (DN20) | 1.050 | 3/4" (DN20) |
10322B45Q | 3/4" (DN20) | 1.050 | 3/4" (DN20) | 1.050 | 3/4" (DN20) |
10322B50Q | 3/4" (DN20) | 1.050 | 3/4" (DN20) | 1.050 | 3/4" (DN20) |
10322B60Q | 3/4" (DN20) | 1.050 | 3/4" (DN20) | 1.050 | 3/4" (DN20) |
color | brass |
---|---|
materials | brass (ASTM B16) |
finishing | none |
manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
connection type | MPT - male thread conical (NPT), FPT - female thread conical (NPT) |
sealing | EPDM |
product group | valves (safety relief valve) |
---|---|
ETIM class | EC011311 Safety valve |
brand | Apollo Valves |
series | 10-322 Safety Relief Valves |
product type | 10322BQ |
label | value |
---|---|
ETIM class | EC011311 Safety valve |
Housing material | Brass |
Connection 1 | External thread conical (NPT) |
Nominal diameter connection 1 | 3/4 inch (20) |
Outer pipe diameter connection 1 | 26.67mm |
Outer pipe diameter connection 1 (imperial) | 1.05" |
Connection 2 | Internal thread conical (NPT) |
Nominal diameter connection 2 | 3/4 inch (20) |
Outer pipe diameter connection 2 | 26.67mm |
Outer pipe diameter connection 2 (imperial) | 1.05" |
Max. operating pressure at 20 °C | 4.14bar |
Max. operating pressure at 20 °C (imperial) | 60psi |
Medium temperature (continuous) | 0°C - 155°C |
Medium temperature (continuous) (imperial) | 32°F - 311°F |
Surface protection | Untreated |
Sealing | Ethylene-propylene diene monomer rubber (EPDM) |
Length of connection 1 | 45.97mm |
Length of connection 1 (imperial) | 1.81" |
Length of connection 2 | 35.05mm |
Length of connection 2 (imperial) | 1.38" |
Height | 95.25mm |
Suitable for heating | Yes |
Suitable for cooling | No |
Suitable for solar heating | No |
Suitable for hot tap water | No |
